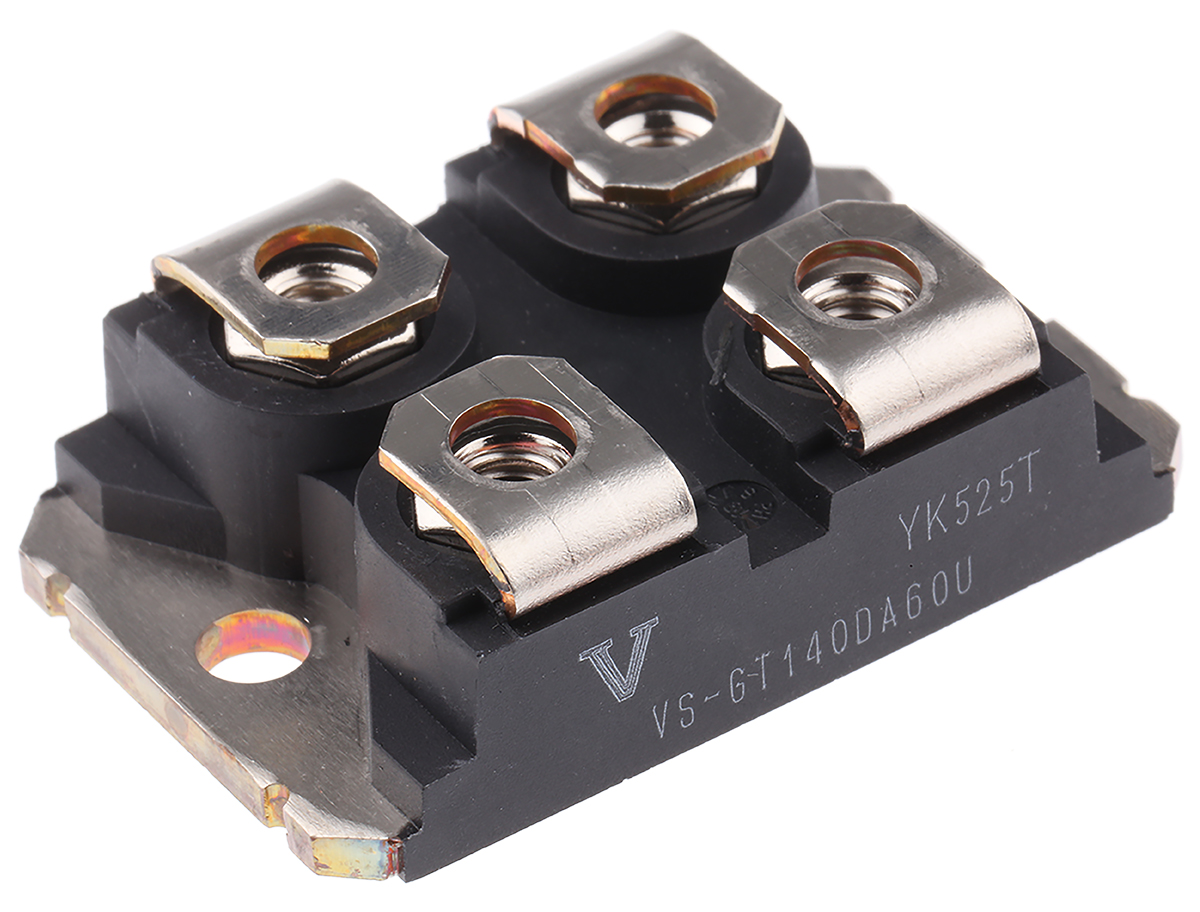

Vishay VS-GT140DA60U, SOT-227 IGBT Module, 184 A max, 600 V, Panel Mount

VS-GT140DA60U Vishay , SOT-227 IGBT Module, 184 A max, 600 V, Panel Mount
Vishay

Product Information

Dimensions:
38.3 x 25.7 x 12.3mm
Mounting Type:
Panel Mount
Maximum Power Dissipation:
577 W
Maximum Collector Emitter Voltage:
600 V
Channel Type:
N
Maximum Continuous Collector Current:
184 A
Maximum Gate Emitter Voltage:
±20V
Package Type:
SOT-227
Minimum Operating Temperature:
-40 °C
Switching Speed:
30kHz
Configuration:
Single
Maximum Operating Temperature:
+175 °C
Pin Count:
4
Transistor Configuration:
Single
RoHs Compliant
Checking for live stock

This is SOT-227 IGBT Module 184 A max 600 V Panel Mount manufactured by Vishay. The manufacturer part number is VS-GT140DA60U. The given dimensions of the product include 38.3 x 25.7 x 12.3mm. The product is available in panel mount configuration. Provides up to 577 w maximum power dissipation. Whereas features a 600 v of collector emitter voltage (max). The product is available in [Cannel Type] channel. The product has a maximum 184 a continuous collector current . It offers a maximum ±20v gate emitter voltage . The package is a sort of sot-227. Whereas, the minimum operating temperature of the product is -40 °c. It has about 30khz switching speed . The product is available in single configuration. It has a maximum operating temperature of +175 °c. It contains 4 pins. The product offers single transistor configuration.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search VS-GT140DA60U on website for other similar products.
We accept all major payment methods for all products including ET13806950. Please check your shopping cart at the time of order.
You can order Vishay brand products with VS-GT140DA60U directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IGBTs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay VS-GT140DA60U, SOT-227 IGBT Module, 184 A max, 600 V, Panel Mount. You can also check on our website or by contacting our customer support team for further order details on Vishay VS-GT140DA60U, SOT-227 IGBT Module, 184 A max, 600 V, Panel Mount.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET13806950 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13806950.
Yes. We ship VS-GT140DA60U Internationally to many countries around the world.
