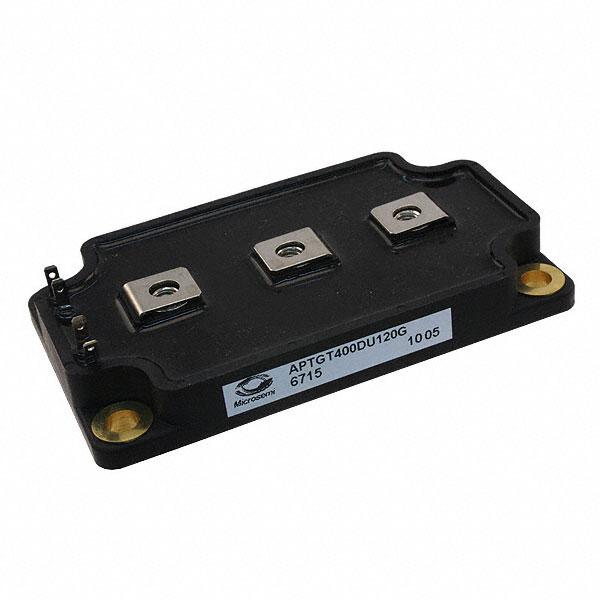

Microchip Technology APTGT400DU120G

Enrgtech Part No: ET20000580
|
Manufacturer Part No:
APTGT400DU120G
|
Manufacturer: Microchip Technology

Product Information

Current - Collector (Ic) (Max):

560 A

HTSUS:

8541.29.0095

RoHS Status:

ROHS3 Compliant

Vce(on) (Max) @ Vge, Ic:

2.1V @ 15V, 400A

Voltage - Collector Emitter Breakdown (Max):

1200 V

Operating Temperature:

-40°C ~ 150°C (TJ)

Input Capacitance (Cies) @ Vce:

28 nF @ 25 V

Package / Case:

SP6

Input:

Standard

NTC Thermistor:

title:

APTGT400DU120G

REACH Status:

REACH Unaffected

Checking for live stock

This is manufactured by Microchip Technology. The manufacturer part number is APTGT400DU120G. The maximum collector current includes 560 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Features 2.1v @ 15v, 400a. The maximum collector emitter breakdown voltage of the product is 1200 v. The product has -40°c ~ 150°c (tj) operating temperature range. It holds 28 nf @ 25 v of input capacitance. Moreover, the product comes in sp6. Its input values include standard. NTC Thermistor - no. In addition, it is reach unaffected. The product is available in dual, common source configuration. The microchip technology's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). It has a long 27 weeks standard lead time. Features an IGBT trench field stop type. In addition, 750 µa is the maximum current at collector cutoff. The product is available in chassis mount configuration. sp6 is the supplier device package value. In addition, bulk is the available packaging type of the product. The maximum power of the product is 1785 w. Moreover, it corresponds to aptgt400, a base product number of the product. The product is designated with the ear99 code number.

Assembly Site 27/Jan/2023(PCN Assembly/Origin)

High-Voltage Power Discretes and Modules(Datasheets)

Microchip RoHS(Environmental Information)

Microchip REACH(Environmental Information)
