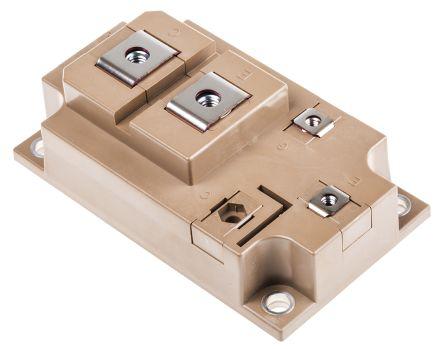

Fuji Electric 1MBi600V-120-50, M153 IGBT Module, 600 A max, 1200 V, Panel Mount

Enrgtech Part No: ET16801757
|
Manufacturer Part No:
1MBI600V-120-50
|
Manufacturer: Fuji Electric

1MBI600V-120-50 Fuji Electric 1MBi600V-120-50, M153 IGBT Module, 600 A max, 1200 V, Panel Mount

Product Information

Configuration:

Single

Dimensions:

108 x 62 x 36mm

Mounting Type:

Panel Mount

Maximum Power Dissipation:

3 kW

Maximum Continuous Collector Current:

600 A

Maximum Collector Emitter Voltage:

1200 V

Height:

36mm

Width:

62mm

Length:

108mm

Maximum Gate Emitter Voltage:

±20V

Package Type:

M153

Channel Type:

Checking for live stock

This is 1MBi600V-120-50 M153 IGBT Module 600 A max 1200 V Panel Mount manufactured by Fuji Electric. The manufacturer part number is 1MBI600V-120-50. The product is available in single configuration. The given dimensions of the product include 108 x 62 x 36mm. The product is available in panel mount configuration. Provides up to 3 kw maximum power dissipation. The product has a maximum 600 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). In addition, the height is 36mm. Furthermore, the product is 62mm wide. Its accurate length is 108mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of m153. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 4 pins. The product offers single transistor configuration.
