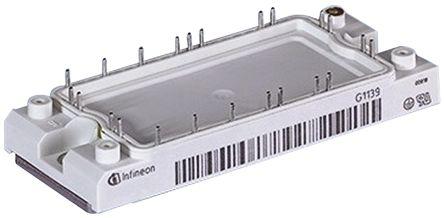

Infineon FP50R07N2E4B11BOSA1, ECONO2 3 Phase Bridge IGBT Module, 70 A max, 650 V, PCB Mount

Enrgtech Part No: ET16792829
|
Manufacturer Part No:
FP50R07N2E4B11BOSA1
|
Manufacturer: Infineon

FP50R07N2E4B11BOSA1 Infineon , ECONO2 3 Phase Bridge IGBT Module, 70 A max, 650 V, PCB Mount

Product Information

Configuration:

3 Phase Bridge

Dimensions:

107.5 x 45 x 17mm

Mounting Type:

PCB Mount

Maximum Power Dissipation:

190 W

Maximum Continuous Collector Current:

70 A

Maximum Collector Emitter Voltage:

650 V

Height:

17mm

Width:

45mm

Length:

107.5mm

Maximum Gate Emitter Voltage:

±20V

Package Type:

ECONO2

Minimum Operating Temperature:

-40 °C

Checking for live stock

This is ECONO2 3 Phase Bridge IGBT Module 70 A max 650 V PCB Mount manufactured by Infineon. The manufacturer part number is FP50R07N2E4B11BOSA1. The product is available in 3 phase bridge configuration. The given dimensions of the product include 107.5 x 45 x 17mm. The product is available in pcb mount configuration. Provides up to 190 w maximum power dissipation. The product has a maximum 70 a continuous collector current . Whereas features a 650 v of collector emitter voltage (max). In addition, the height is 17mm. Furthermore, the product is 45mm wide. Its accurate length is 107.5mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of econo2. Whereas, the minimum operating temperature of the product is -40 °c. It has about 1mhz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 31 pins. The product offers 3 phase transistor configuration.
