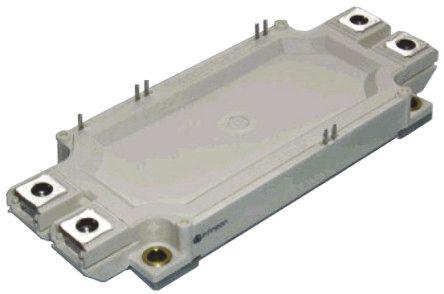

Infineon FF450R12ME4B11BPSA1, ECONOD Series IGBT Module, 675 A max, 1200 V, PCB Mount

FF450R12ME4B11BPSA1 Infineon , ECONOD Series IGBT Module, 675 A max, 1200 V, PCB Mount
Infineon

Product Information

Dimensions:
122.5 x 62.5 x 17mm
Mounting Type:
PCB Mount
Maximum Power Dissipation:
2.25 kW
Maximum Continuous Collector Current:
675 A
Maximum Collector Emitter Voltage:
1200 V
Configuration:
Series
Height:
17mm
Width:
62.5mm
Length:
122.5mm
Maximum Gate Emitter Voltage:
±20V
Package Type:
ECONOD
Minimum Operating Temperature:
-40 °C
Switching Speed:
1MHz
Channel Type:
N
Maximum Operating Temperature:
+150 °C
Pin Count:
11
Transistor Configuration:
Series
RoHs Compliant
Checking for live stock

This is ECONOD Series IGBT Module 675 A max 1200 V PCB Mount manufactured by Infineon. The manufacturer part number is FF450R12ME4B11BPSA1. The given dimensions of the product include 122.5 x 62.5 x 17mm. The product is available in pcb mount configuration. Provides up to 2.25 kw maximum power dissipation. The product has a maximum 675 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). The product is available in series configuration. In addition, the height is 17mm. Furthermore, the product is 62.5mm wide. Its accurate length is 122.5mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of econod. Whereas, the minimum operating temperature of the product is -40 °c. It has about 1mhz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 11 pins. The product offers series transistor configuration.

pdf icon
FF450R12ME4_B11, IGBT-Module(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search FF450R12ME4B11BPSA1 on website for other similar products.
We accept all major payment methods for all products including ET16792813. Please check your shopping cart at the time of order.
You can order Infineon brand products with FF450R12ME4B11BPSA1 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in IGBT Modules category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Infineon FF450R12ME4B11BPSA1, ECONOD Series IGBT Module, 675 A max, 1200 V, PCB Mount. You can also check on our website or by contacting our customer support team for further order details on Infineon FF450R12ME4B11BPSA1, ECONOD Series IGBT Module, 675 A max, 1200 V, PCB Mount.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16792813 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Infineon" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16792813.
Yes. We ship FF450R12ME4B11BPSA1 Internationally to many countries around the world.
