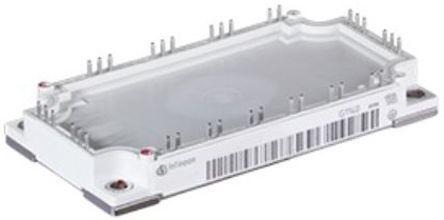

Infineon F4150R12KS4BOSA1, AG-ECONO3-4 Bridge IGBT Module, 180 A max, 1200 V, Panel Mount

Enrgtech Part No: ET16792788
|
Manufacturer Part No:
F4150R12KS4BOSA1
|
Manufacturer: Infineon

F4150R12KS4BOSA1 Infineon , AG-ECONO3-4 Bridge IGBT Module, 180 A max, 1200 V, Panel Mount

(0)

Product Information

Configuration:

Bridge

Dimensions:

122 x 62 x 17mm

Mounting Type:

Panel Mount

Maximum Power Dissipation:

960 W

Maximum Continuous Collector Current:

180 A

Maximum Collector Emitter Voltage:

1200 V

Channel Type:

Width:

62mm

Length:

122mm

Maximum Gate Emitter Voltage:

±20V

Package Type:

AG-ECONO3-4

Minimum Operating Temperature:

-40 °C

Checking for live stock

This is AG-ECONO3-4 Bridge IGBT Module 180 A max 1200 V Panel Mount manufactured by Infineon. The manufacturer part number is F4150R12KS4BOSA1. The product is available in bridge configuration. The given dimensions of the product include 122 x 62 x 17mm. The product is available in panel mount configuration. Provides up to 960 w maximum power dissipation. The product has a maximum 180 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). The product is available in [Cannel Type] channel. Furthermore, the product is 62mm wide. Its accurate length is 122mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of ag-econo3-4. Whereas, the minimum operating temperature of the product is -40 °c. In addition, the height is 17mm. It has a maximum operating temperature of +125 °c. The product offers full bridge transistor configuration.

F4-150R12KS4 Quad IGBT Module(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
