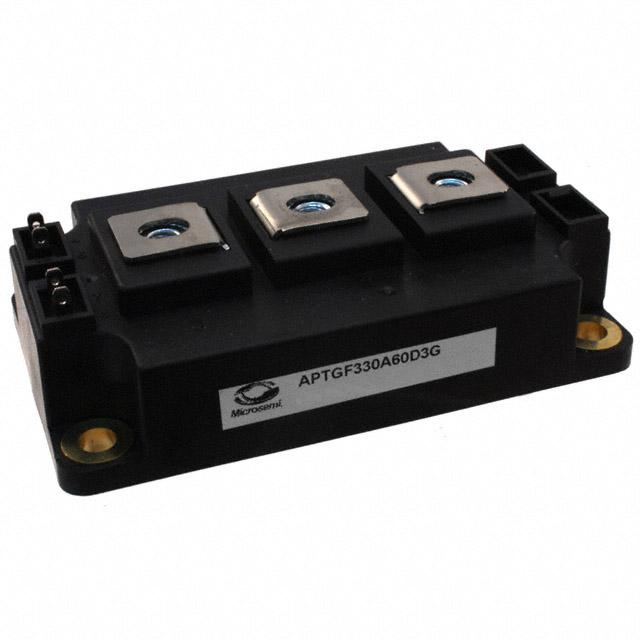

Microsemi Corporation APTGF330A60D3G

Enrgtech Part No: ET16025301
|
Manufacturer Part No:
APTGF330A60D3G
|
Manufacturer: Microsemi Corporation

Product Information

Current - Collector (Ic) (Max):

520 A

HTSUS:

8541.29.0095

Vce(on) (Max) @ Vge, Ic:

2.45V @ 15V, 400A

Operating Temperature:

Input Capacitance (Cies) @ Vce:

18 nF @ 25 V

Package / Case:

D-3 Module

Input:

Standard

NTC Thermistor:

Voltage - Collector Emitter Breakdown (Max):

600 V

Configuration:

Half Bridge

Package:

Bulk

Moisture Sensitivity Level (MSL):

1 (Unlimited)

Checking for live stock

This is manufactured by Microsemi Corporation. The manufacturer part number is APTGF330A60D3G. The maximum collector current includes 520 a. It is assigned with possible HTSUS value of 8541.29.0095. Features 2.45v @ 15v, 400a. It holds 18 nf @ 25 v of input capacitance. Moreover, the product comes in d-3 module. Its input values include standard. NTC Thermistor - no. The maximum collector emitter breakdown voltage of the product is 600 v. The product is available in half bridge configuration. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). Features an IGBT npt type. In addition, 500 µa is the maximum current at collector cutoff. The product is available in chassis mount configuration. d3 is the supplier device package value. The maximum power of the product is 1560 w. The product is designated with the ear99 code number.

APTGF330A60D3G(Datasheets)

Power Products Catalog(Datasheets)

Power Module Disc 23/Mar/2016(PCN Part Status Change)

Microchip CA Prop65(Environmental Information)

Microchip RoHS(Environmental Information)

Microchip REACH(Environmental Information)
