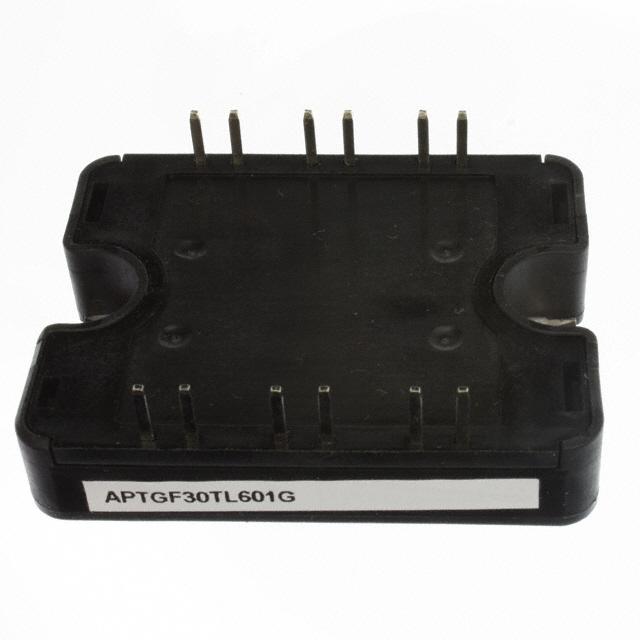

Microsemi Corporation APTGF30TL601G

APTGF30TL601G Microsemi Corporation
Microsemi Corporation

Product Information

Current - Collector (Ic) (Max):
42 A
HTSUS:
8541.29.0095
Vce(on) (Max) @ Vge, Ic:
2.45V @ 15V, 30A
Operating Temperature:
-
Input Capacitance (Cies) @ Vce:
1.35 nF @ 25 V
Package / Case:
SP1
Input:
Standard
NTC Thermistor:
No
Voltage - Collector Emitter Breakdown (Max):
600 V
Configuration:
Three Level Inverter
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
IGBT Type:
NPT
Current - Collector Cutoff (Max):
250 µA
Mounting Type:
Chassis Mount
Series:
-
Supplier Device Package:
SP1
Power - Max:
140 W
ECCN:
EAR99
Checking for live stock

This is manufactured by Microsemi Corporation. The manufacturer part number is APTGF30TL601G. The maximum collector current includes 42 a. It is assigned with possible HTSUS value of 8541.29.0095. Features 2.45v @ 15v, 30a. It holds 1.35 nf @ 25 v of input capacitance. Moreover, the product comes in sp1. Its input values include standard. NTC Thermistor - no. The maximum collector emitter breakdown voltage of the product is 600 v. The product is available in three level inverter configuration. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). Features an IGBT npt type. In addition, 250 µa is the maximum current at collector cutoff. The product is available in chassis mount configuration. sp1 is the supplier device package value. The maximum power of the product is 140 w. The product is designated with the ear99 code number.
