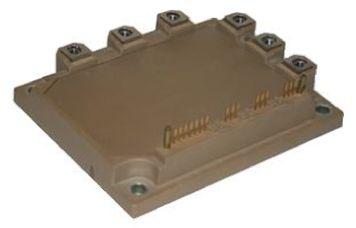

Fuji Electric 7MBP75RA-120-55, P 610 3 Phase IGBT Module, 75 A max, 1200 V, PCB Mount

Enrgtech Part No: ET14066149
|
Manufacturer Part No:
7MBP75RA-120-55
|
Manufacturer: Fuji Electric

7MBP75RA-120-55 Fuji Electric , P 610 3 Phase IGBT Module, 75 A max, 1200 V, PCB Mount

Product Information

Configuration:

3 Phase

Dimensions:

109 x 88 x 22mm

Mounting Type:

PCB Mount

Maximum Power Dissipation:

500 W

Maximum Continuous Collector Current:

75 A

Maximum Collector Emitter Voltage:

1200 V

Height:

22mm

Width:

88mm

Length:

109mm

Package Type:

P 610

Minimum Operating Temperature:

-20 °C

Channel Type:

Checking for live stock

This is P 610 3 Phase IGBT Module 75 A max 1200 V PCB Mount manufactured by Fuji Electric. The manufacturer part number is 7MBP75RA-120-55. The product is available in 3 phase configuration. The given dimensions of the product include 109 x 88 x 22mm. The product is available in pcb mount configuration. Provides up to 500 w maximum power dissipation. The product has a maximum 75 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). In addition, the height is 22mm. Furthermore, the product is 88mm wide. Its accurate length is 109mm. The package is a sort of p 610. Whereas, the minimum operating temperature of the product is -20 °c. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +100 °c. It contains 22 pins. The product offers 3 phase transistor configuration.

Six pack IGBT Module, 1200V(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
