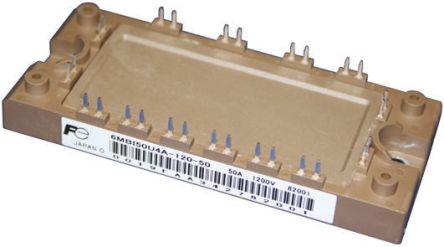

Fuji Electric 6MBI50U4A-120-50, M636 3 Phase Bridge IGBT Module, 50 A max, 1200 V, PCB Mount

Enrgtech Part No: ET14013764
|
Manufacturer Part No:
6MBI50U4A-120-50
|
Manufacturer: Fuji Electric

6MBI50U4A-120-50 Fuji Electric , M636 3 Phase Bridge IGBT Module, 50 A max, 1200 V, PCB Mount

Product Information

Configuration:

3 Phase Bridge

Dimensions:

107.5 x 45 x 17mm

Mounting Type:

PCB Mount

Maximum Power Dissipation:

275 W

Maximum Continuous Collector Current:

50 A

Maximum Collector Emitter Voltage:

1200 V

Height:

17mm

Width:

45mm

Length:

107.5mm

Maximum Gate Emitter Voltage:

±20V

Package Type:

M636

Channel Type:

Checking for live stock

This is M636 3 Phase Bridge IGBT Module 50 A max 1200 V PCB Mount manufactured by Fuji Electric. The manufacturer part number is 6MBI50U4A-120-50. The product is available in 3 phase bridge configuration. The given dimensions of the product include 107.5 x 45 x 17mm. The product is available in pcb mount configuration. Provides up to 275 w maximum power dissipation. The product has a maximum 50 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). In addition, the height is 17mm. Furthermore, the product is 45mm wide. Its accurate length is 107.5mm. It offers a maximum ±20v gate emitter voltage . The package is a sort of m636. The product is available in [Cannel Type] channel. It has a maximum operating temperature of +150 °c. It contains 28 pins. The product offers 3 phase transistor configuration.

6MBI50U4A-120 Data Sheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
