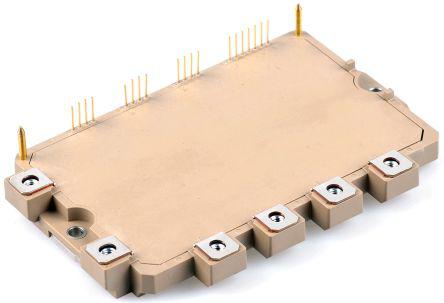

Fuji Electric 6MBP100VDA-120-50, P 630 3 Phase Smart Power Module, 100 A max, 1200 V, PCB Mount

Enrgtech Part No: ET13959571
|
Manufacturer Part No:
6MBP100VDA-120-50
|
Manufacturer: Fuji Electric

6MBP100VDA-120-50 Fuji Electric , P 630 3 Phase Smart Power Module, 100 A max, 1200 V, PCB Mount

Product Information

Dimensions:

128.5 x 84 x 14mm

Mounting Type:

PCB Mount

Maximum Power Dissipation:

417 W

Maximum Continuous Collector Current:

100 A

Maximum Collector Emitter Voltage:

1200 V

Configuration:

3 Phase

Height:

14mm

Width:

84mm

Length:

128.5mm

Package Type:

P 630

Minimum Operating Temperature:

-20 °C

Switching Speed:

20kHz

Checking for live stock

This is P 630 3 Phase Smart Power Module 100 A max 1200 V PCB Mount manufactured by Fuji Electric. The manufacturer part number is 6MBP100VDA-120-50. The given dimensions of the product include 128.5 x 84 x 14mm. The product is available in pcb mount configuration. Provides up to 417 w maximum power dissipation. The product has a maximum 100 a continuous collector current . Whereas features a 1200 v of collector emitter voltage (max). The product is available in 3 phase configuration. In addition, the height is 14mm. Furthermore, the product is 84mm wide. Its accurate length is 128.5mm. The package is a sort of p 630. Whereas, the minimum operating temperature of the product is -20 °c. It has about 20khz switching speed . The product is available in [Cannel Type] channel. It has a maximum operating temperature of +110 °c. It contains 25 pins. The product offers 3 phase transistor configuration.

6MBP100VDA120-50, IGBT Module, IPM (Intelligent Power Module), V-Series(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search 6MBP100VDA-120-50 on website for other similar products.

We accept all major payment methods for all products including ET13959571. Please check your shopping cart at the time of order.

You can order Fuji Electric brand products with 6MBP100VDA-120-50 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in IGBT Modules category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Fuji Electric 6MBP100VDA-120-50, P 630 3 Phase Smart Power Module, 100 A max, 1200 V, PCB Mount. You can also check on our website or by contacting our customer support team for further order details on Fuji Electric 6MBP100VDA-120-50, P 630 3 Phase Smart Power Module, 100 A max, 1200 V, PCB Mount.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET13959571 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Fuji Electric" products on our website by using Enrgtech's Unique Manufacturing Part Number ET13959571.

Yes. We ship 6MBP100VDA-120-50 Internationally to many countries around the world.
