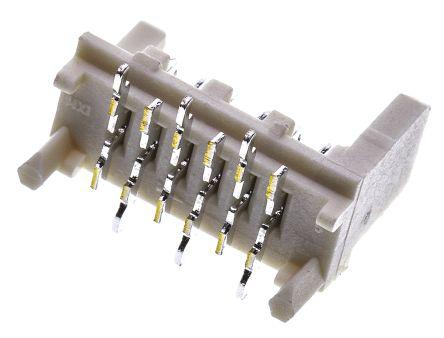

Molex PICOFLEX Series 1.27mm Pitch Surface Mount IDC Connector, Male, 6 Way, 1 Row

90814-0006 Molex PICOFLEX Series 1.27mm Pitch Surface Mount IDC Connector, Male, 6 Way, 1 Row
Molex

Product Information

Number of Contacts:
6
Current Rating:
1.2A
Minimum Operating Temperature:
-40°C
Mounting Type:
Surface Mount
Voltage Rating:
250 V ac/dc
Gender:
Male
Body Orientation:
Straight
Pitch:
1.27mm
Termination Method:
SMT
Housing Material:
Nylon
Number of Rows:
1
Contact Plating:
Tin over Nickel
Series:
Picoflex
Contact Material:
Brass
Maximum Operating Temperature:
+105°C
CAD Drawing:
3D CAD Model
Series Number:
90814
RoHs Compliant
Checking for live stock

This is PICOFLEX Series 1.27mm Pitch Surface Mount IDC Connector Male 6 Way 1 Row manufactured by Molex. The manufacturer part number is 90814-0006. The product contains 6 contacts. The product has a current rating of 1.2a. Whereas, the minimum operating temperature of the product is -40°c. The product is available in surface mount configuration. Moreover, the product has a nominal 250 v ac/dc voltage rating. In addition, male is the available "Gender" of the product. It has straight body orientation. Moreover, the product is 1.27mm. It allows smt termination method. The product also features robust nylon housing material. It comes in 1 of rows. The high-quality tin over nickel is used as contact plating material. The product picoflex, is a highly preferred choice for users. The product is made from sturdy brass materials. It has a maximum operating temperature of +105°c. It has 3d cad model CAD drawing . It carries [Serial Number] serial number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Line Drawing(Technical Reference)
