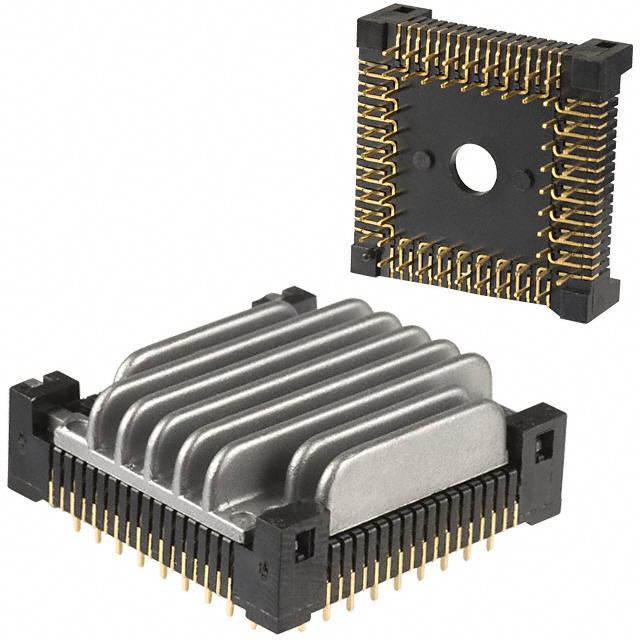

3M 268-5401-52-1102JH

268-5401-52-1102JH 3M
3M

Product Information

Contact Resistance:
-
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Housing Material:
Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature:
-55°C ~ 105°C
Number of Positions or Pins (Grid):
68 (4 x 17)
Contact Finish Thickness - Post:
30.0µin (0.76µm)
Contact Material - Mating:
Beryllium Copper
Type:
CLCC
Contact Finish - Mating:
Gold
title:
268-5401-52-1102JH
Material Flammability Rating:
UL94 V-0
Manufacturer:
3M
Contact Material - Post:
Beryllium Copper
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Current Rating (Amps):
1 A
Pitch - Mating:
0.100" (2.54mm)
Features:
Closed Frame
Mounting Type:
Through Hole
Termination Post Length:
0.100" (2.54mm)
Series:
OEM
Packaging:
Bulk
ECCN:
EAR99
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Pitch - Post:
0.100" (2.54mm)
Contact Finish - Post:
Gold
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 268-5401-52-1102JH. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product also features robust polyphenylene sulfide (pps), glass filled housing material. The product has -55°c ~ 105°c operating temperature range. The product is supplied with 68 (4 x 17) positions/pins. Additionally, it features 30.0µin (0.76µm) of post thickness. Its contact is manufactured from highly durable beryllium copper. It comes in clcc configuration. It has nice contact finishing of gold. It carries ul94 v-0 of material flammability rating. The 3m's product offers user-desired applications. The post (contact material) is designed from high stable beryllium copper. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. Additionally, the product's output is 1 a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include closed frame. The product is available in through hole configuration. The termination post is a 0.100" (2.54mm) long. The product oem, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product is designated with the ear99 code number. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. The given pitch of the item is 0.100" (2.54mm). It has possible gold contact post finishing.

pdf icon
Obsolete 29/JUN/2022(PCN Obsolescence/ EOL)
pdf icon
OEM LCC Sockets Datasheet(Datasheets)
