Row Width:
15.24mm
Number of Contacts:
48
Current Rating:
1A
Dimensions:
60.9 x 17.7 x 2.8mm
Mounting Type:
Through Hole
Voltage Rating:
100 V ac, 150 V dc
Contact Material:
Beryllium Copper, Brass
Termination Method:
Solder
Length:
60.9mm
Housing Material:
Glass Fibre Reinforced PET
Width:
17.7mm
Depth:
2.8mm
Contact Plating:
Gold, Tin
Pitch:
2.54mm
Orientation:
Vertical
Frame Type:
Open Frame
Maximum Operating Temperature:
+125°C
Minimum Operating Temperature:
-55°C
Pin Type:
Turned
Contact Resistance:
10mOhm
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature:
-55°C ~ 125°C
Number of Positions or Pins (Grid):
48 (2 x 24)
Contact Finish Thickness - Post:
-
Contact Material - Mating:
Beryllium Copper

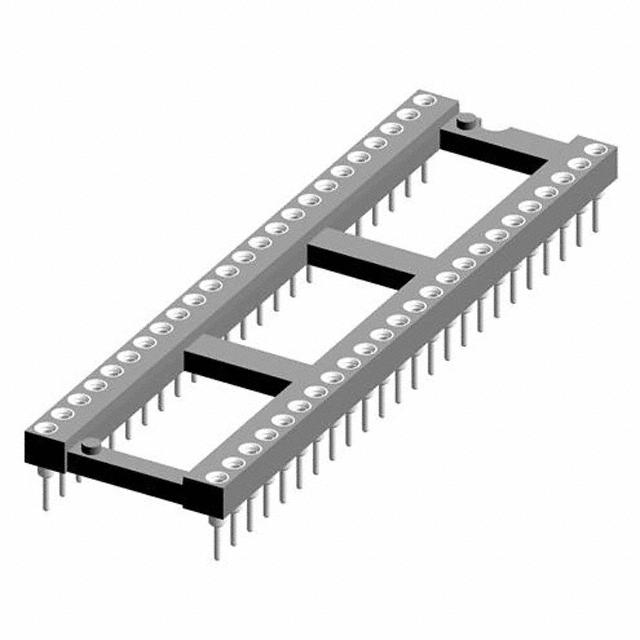

Type:
DIP, 0.6" (15.24mm) Row Spacing
title:
110-87-648-41-001101
REACH Status:
REACH Unaffected
edacadModel:
110-87-648-41-001101 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/3757279
Manufacturer:
Preci-Dip
Contact Material - Post:
Brass
Contact Finish - Mating:
Gold
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
11 Weeks
Current Rating (Amps):
1 A
Pitch - Mating:
0.100" (2.54mm)
Features:
Open Frame
Mounting Type:
Through Hole
Termination Post Length:
0.125" (3.18mm)
Series:
110
Packaging:
Tube
Contact Finish Thickness - Mating:
Flash
ECCN:
EAR99
Base Product Number:
110-87
Pitch - Post:
0.100" (2.54mm)
