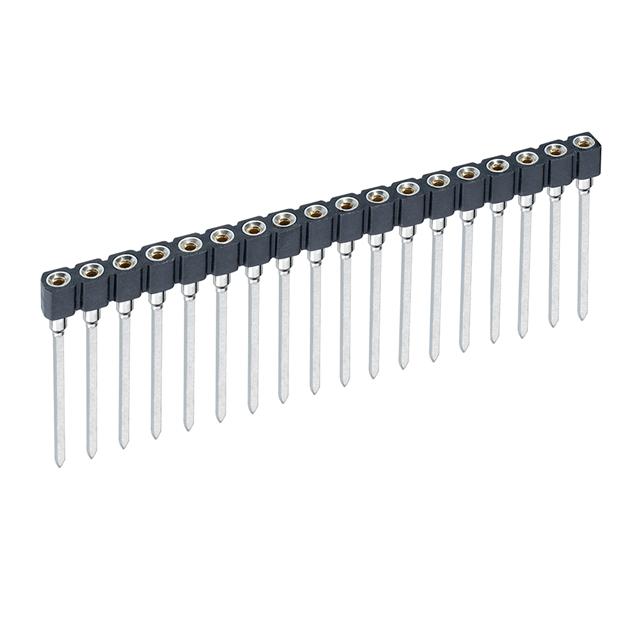

Harwin Inc. D01-9951842

D01-9951842 Harwin Inc.
Harwin Inc.

Product Information

Contact Resistance:
10mOhm
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Polycyclohexylenedimethylene Terephthalate (PCT), Polyester, Glass Filled
Operating Temperature:
-55°C ~ 125°C
Number of Positions or Pins (Grid):
18 (1 x 18)
Contact Finish Thickness - Post:
196.9µin (5.00µm)
Contact Material - Mating:
Beryllium Copper
Type:
SIP
Contact Finish - Mating:
Gold
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Contact Material - Post:
Brass
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Wire Wrap
Current Rating (Amps):
1 A
Pitch - Mating:
0.100" (2.54mm)
Features:
-
Mounting Type:
Through Hole
Termination Post Length:
0.510" (12.95mm)
Series:
D01-995
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
ECCN:
EAR99
Base Product Number:
D01-995
Pitch - Post:
0.100" (2.54mm)
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is D01-9951842. It features a 10mohm contact resistance. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polycyclohexylenedimethylene terephthalate (pct), polyester, glass filled housing material. The product has -55°c ~ 125°c operating temperature range. The product is supplied with 18 (1 x 18) positions/pins. Additionally, it features 196.9µin (5.00µm) of post thickness. Its contact is manufactured from highly durable beryllium copper. It comes in sip configuration. It has nice contact finishing of gold. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The post (contact material) is designed from high stable brass. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The product features wire wrap termination style. Additionally, the product's output is 1 a. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The termination post is a 0.510" (12.95mm) long. The product d01-995, is a highly preferred choice for users. However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number. Moreover, it corresponds to d01-995, a base product number of the product. The given pitch of the item is 0.100" (2.54mm).

pdf icon
Round Pin lC Sockets Spec Sheet(Design Resources)
pdf icon
Harwin REACH(Environmental Information)
pdf icon
D01-995xx42 Drawing(2D Drawings)
pdf icon
DK OBS NOTICE(PCN Obsolescence/ EOL)
