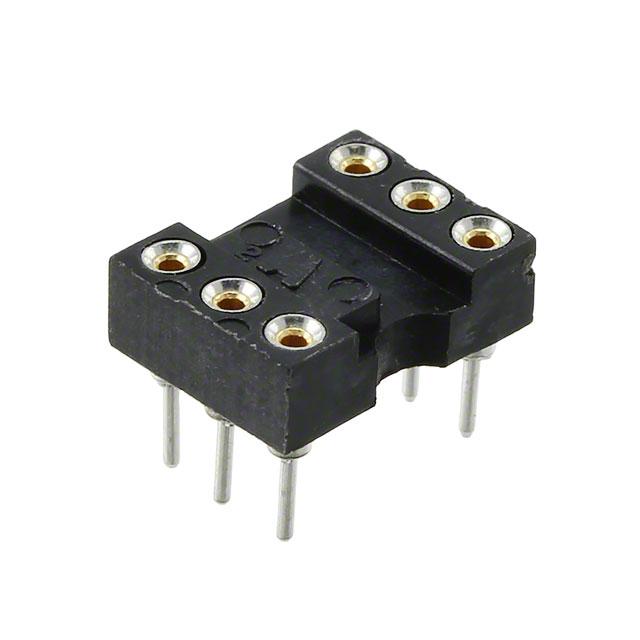

TE Connectivity AMP Connectors 506-AG11D-ES

506-AG11D-ES TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Resistance:
10mOhm
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Housing Material:
Polyester
Operating Temperature:
-55°C ~ 105°C
Number of Positions or Pins (Grid):
6 (2 x 3)
Contact Finish Thickness - Post:
-
Contact Material - Mating:
Copper Alloy
Type:
DIP, 0.3" (7.62mm) Row Spacing
Contact Finish - Mating:
Gold
REACH Status:
Vendor Undefined
Material Flammability Rating:
UL94 V-0
Manufacturer:
TE Connectivity AMP Connectors
Contact Material - Post:
Copper Alloy
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Current Rating (Amps):
3 A
Pitch - Mating:
0.100" (2.54mm)
Features:
Closed Frame
Mounting Type:
Through Hole
Termination Post Length:
0.125" (3.18mm)
Series:
500
Packaging:
Tube
ECCN:
EAR99
Contact Finish Thickness - Mating:
25.0µin (0.63µm)
Pitch - Post:
0.100" (2.54mm)
Base Product Number:
506
Contact Finish - Post:
Tin-Lead
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 506-AG11D-ES. It features a 10mohm contact resistance. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product also features robust polyester housing material. The product has -55°c ~ 105°c operating temperature range. The product is supplied with 6 (2 x 3) positions/pins. Its contact is manufactured from highly durable copper alloy. It comes in dip, 0.3" (7.62mm) row spacing configuration. It has nice contact finishing of gold. In addition, it is vendor undefined. It carries ul94 v-0 of material flammability rating. The te connectivity amp connectors's product offers user-desired applications. The post (contact material) is designed from high stable copper alloy. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. Additionally, the product's output is 3 a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include closed frame. The product is available in through hole configuration. The termination post is a 0.125" (3.18mm) long. The product 500, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. The product is designated with the ear99 code number. However, 25.0µin (0.63µm) is the "Contact Finish Thickness - Mating" of the product. The given pitch of the item is 0.100" (2.54mm). Moreover, it corresponds to 506, a base product number of the product. It has possible tin-lead contact post finishing.
