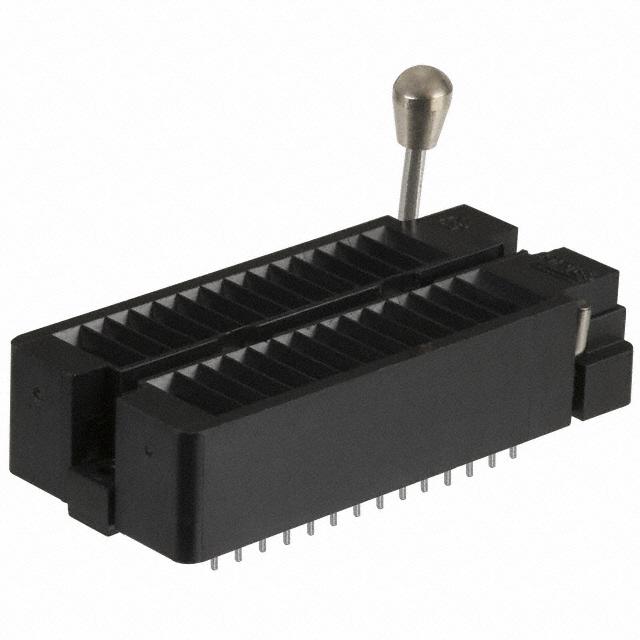

Aries Electronics 28-6554-10

28-6554-10 Aries Electronics
28-6554-10
28-6554-10
ET11342256
ET11342256
IC Sockets
IC Sockets
28-6554-10 Aries ElectronicsAries Electronics
28-6554-10 Aries ElectronicsAries Electronics
28-6554-10 Aries Electronics
Aries Electronics

Product Information

Current Rating:
1A
Gender:
Female
Body Orientation:
Straight
Termination Method:
Solder
Housing Material:
PPS
Number of Rows:
2
Contact Plating:
Tin over Nickel
Pitch:
2.54mm
Socket Mounting Type:
Through Hole
Number of Contacts:
28
Contact Material:
Beryllium Copper
Contact Resistance:
-
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Polyphenylene Sulfide (PPS), Glass Filled
Operating Temperature:
-
Number of Positions or Pins (Grid):
28 (2 x 14)
Contact Finish Thickness - Post:
200.0µin (5.08µm)
Contact Material - Mating:
Beryllium Copper
Type:
DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing
Contact Finish - Mating:
Tin
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Contact Material - Post:
Beryllium Copper
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
4 Weeks
Current Rating (Amps):
1 A
Pitch - Mating:
0.100" (2.54mm)
Features:
Closed Frame
Mounting Type:
Through Hole
Termination Post Length:
0.110" (2.78mm)
Series:
55
Contact Finish Thickness - Mating:
200.0µin (5.08µm)
ECCN:
EAR99
Base Product Number:
28-6554
Pitch - Post:
0.100" (2.54mm)
RoHs Compliant
Checking for live stock

This is manufactured by Aries Electronics. The manufacturer part number is 28-6554-10. The product has a current rating of 1a. In addition, female is the available "Gender" of the product. It has straight body orientation. It allows solder termination method. The product also features robust pps housing material. It comes in 2 of rows. The high-quality tin over nickel is used as contact plating material. Moreover, the product is 2.54mm. It has a through hole type socket mounting . The product contains 28 contacts. The product is made from sturdy beryllium copper materials. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polyphenylene sulfide (pps), glass filled housing material. The product is supplied with 28 (2 x 14) positions/pins. Additionally, it features 200.0µin (5.08µm) of post thickness. Its contact is manufactured from highly durable beryllium copper. It comes in dip, zif (zip), 0.6" (15.24mm) row spacing configuration. It has nice contact finishing of tin. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The post (contact material) is designed from high stable beryllium copper. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 4 weeks standard lead time. Additionally, the product's output is 1 a. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include closed frame. The product is available in through hole configuration. The termination post is a 0.110" (2.78mm) long. The product 55, is a highly preferred choice for users. However, 200.0µin (5.08µm) is the "Contact Finish Thickness - Mating" of the product. The product is designated with the ear99 code number. Moreover, it corresponds to 28-6554, a base product number of the product. The given pitch of the item is 0.100" (2.54mm).

pdf icon
Series X55X Universal Zero Insertion Force DIP Test Socket Data Sheet(Technical Reference)
pdf icon
6554 Series Universal ZIF Test Socket Product Data(Technical Reference)
pdf icon
55 Series(Datasheets)
pdf icon
Aries Electronics REACH(Environmental Information)
pdf icon
Aries Electronics RoHS Cert(Environmental Information)
