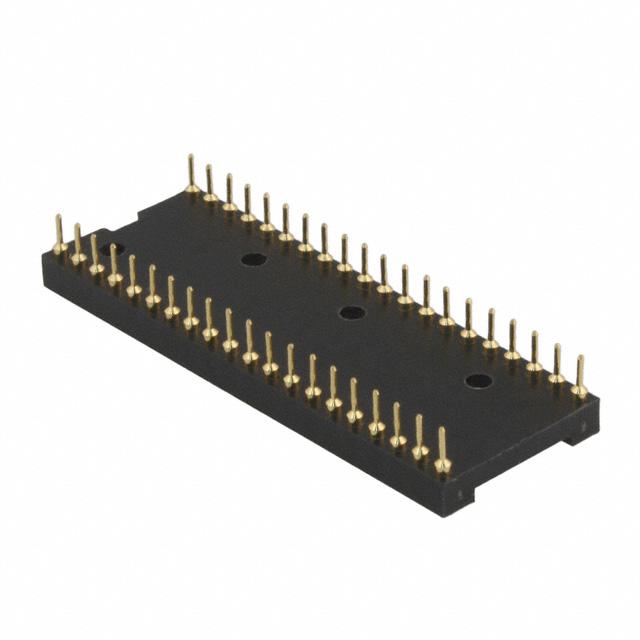

TE Connectivity AMP Connectors 540-AG10D-ES

540-AG10D-ES TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Resistance:
10mOhm
Contact Finish - Post:
-
HTSUS:
8536.69.4040
RoHS Status:
RoHS Compliant
Housing Material:
-
Operating Temperature:
-55°C ~ 125°C
Number of Positions or Pins (Grid):
40 (2 x 20)
Contact Finish Thickness - Post:
-
Contact Material - Mating:
Beryllium Copper
Type:
DIP, 0.6" (15.24mm) Row Spacing
Contact Finish - Mating:
Gold
REACH Status:
REACH Affected
Material Flammability Rating:
-
Contact Material - Post:
Brass
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
Pitch - Mating:
0.100" (2.54mm)
Features:
Closed Frame
Mounting Type:
Through Hole
Termination Post Length:
0.125" (3.18mm)
Series:
500
Contact Finish Thickness - Mating:
-
ECCN:
EAR99
Base Product Number:
540
Pitch - Post:
0.100" (2.54mm)
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 540-AG10D-ES. It features a 10mohm contact resistance. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs compliant. The product has -55°c ~ 125°c operating temperature range. The product is supplied with 40 (2 x 20) positions/pins. Its contact is manufactured from highly durable beryllium copper. It comes in dip, 0.6" (15.24mm) row spacing configuration. It has nice contact finishing of gold. In addition, it is reach affected. The post (contact material) is designed from high stable brass. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include closed frame. The product is available in through hole configuration. The termination post is a 0.125" (3.18mm) long. The product 500, is a highly preferred choice for users. The product is designated with the ear99 code number. Moreover, it corresponds to 540, a base product number of the product. The given pitch of the item is 0.100" (2.54mm).
