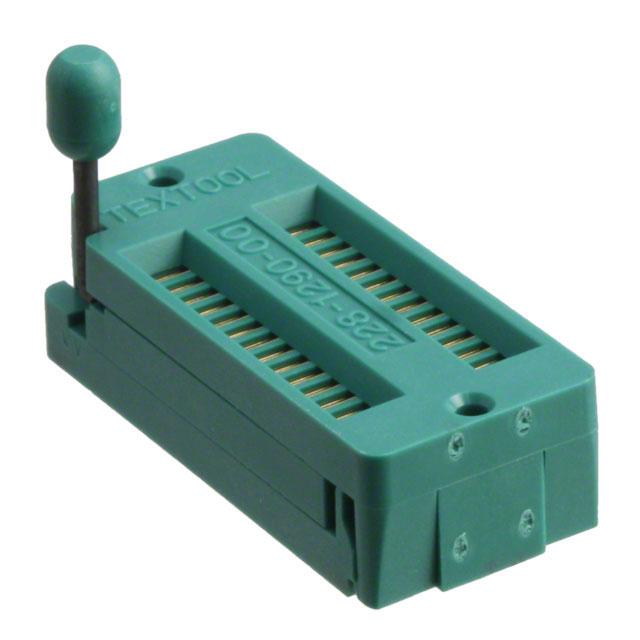

3M 228-1290-00-0602J

228-1290-00-0602J 3M
228-1290-00-0602J
3M

Product Information

Row Width:
10.16mm
Current Rating:
1A
Dimensions:
52.9 x 11.6 x 17.8mm
Mounting Type:
Through Hole
Termination Method:
Solder
Length:
52.9mm
Housing Material:
PSU
Width:
11.6mm
Depth:
17.8mm
Contact Plating:
Gold over Nickel
Pitch:
1.78mm
Number of Contacts:
28
Maximum Operating Temperature:
+150°C
Minimum Operating Temperature:
-55°C
Contact Material:
Beryllium Copper
Contact Resistance:
15mOhm
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Polysulfone (PSU), Glass Filled
Operating Temperature:
-55°C ~ 125°C
Number of Positions or Pins (Grid):
28 (2 x 14)
Contact Finish Thickness - Post:
30.0µin (0.76µm)
Contact Material - Mating:
Beryllium Copper
Type:
DIP, ZIF (ZIP), 0.6" (15.24mm) Row Spacing
Contact Finish - Mating:
Gold
Material Flammability Rating:
UL94 V-0
Manufacturer:
3M
Contact Material - Post:
Beryllium Copper
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Press-Fit
standardLeadTime:
11 Weeks
Current Rating (Amps):
1 A
Pitch - Mating:
0.070" (1.78mm)
Features:
Closed Frame
Mounting Type:
Connector
Termination Post Length:
0.110" (2.78mm)
Series:
Textool™
Packaging:
Bulk
ECCN:
EAR99
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Pitch - Post:
0.100" (2.54mm)
Base Product Number:
228
Contact Finish - Post:
Gold
RoHs Compliant
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 228-1290-00-0602J. Its row is 10.16mm in width . The product has a current rating of 1a. The given dimensions of the product include 52.9 x 11.6 x 17.8mm. The product is available in through hole configuration. It allows solder termination method. Its accurate length is 52.9mm. The product also features robust psu housing material. Furthermore, the product is 11.6mm wide. The product comes in 17.8mm depth. The high-quality gold over nickel is used as contact plating material. Moreover, the product is 1.78mm. The product contains 28 contacts. It has a maximum operating temperature of +150°c. Whereas, the minimum operating temperature of the product is -55°c. The product is made from sturdy beryllium copper materials. It features a 15mohm contact resistance. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polysulfone (psu), glass filled housing material. The product has -55°c ~ 125°c operating temperature range. The product is supplied with 28 (2 x 14) positions/pins. Additionally, it features 30.0µin (0.76µm) of post thickness. Its contact is manufactured from highly durable beryllium copper. It comes in dip, zif (zip), 0.6" (15.24mm) row spacing configuration. It has nice contact finishing of gold. It carries ul94 v-0 of material flammability rating. The 3m's product offers user-desired applications. The post (contact material) is designed from high stable beryllium copper. Its typical moisture sensitivity level is 1 (unlimited). The product features press-fit termination style. It has a long 11 weeks standard lead time. Additionally, the product's output is 1 a. It has 0.070" (1.78mm) of pitch-mating value. The splendid features of the product include closed frame. The product is available in connector configuration. The termination post is a 0.110" (2.78mm) long. The product textool™, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product is designated with the ear99 code number. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. The given pitch of the item is 0.100" (2.54mm). Moreover, it corresponds to 228, a base product number of the product. It has possible gold contact post finishing.

pdf icon
0.70 Inch DIP Sockets Data Sheet(Technical Reference)
pdf icon
.070" Dip Socket(Datasheets)
pdf icon
SOIC Socket Pin Sequence(Design Resources)
