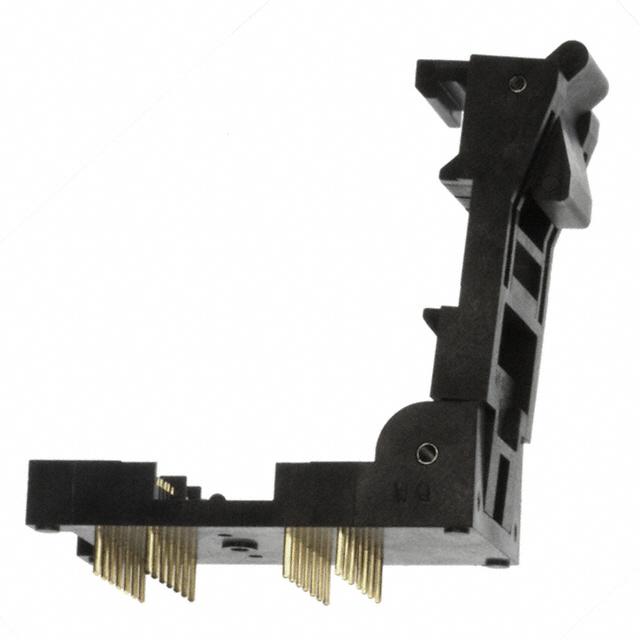

3M 228-7474-55-1902

228-7474-55-1902 3M
3M

Product Information

Contact Resistance:
-
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Housing Material:
Polyethersulfone (PES), Glass Filled
Operating Temperature:
-55°C ~ 150°C
Number of Positions or Pins (Grid):
28 (2 x 14)
Contact Finish Thickness - Post:
30.0µin (0.76µm)
Contact Material - Mating:
Beryllium Copper
Type:
SOIC
Contact Finish - Mating:
Gold
Material Flammability Rating:
UL94 V-0
Manufacturer:
3M
Contact Material - Post:
Beryllium Copper
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Termination:
Solder
standardLeadTime:
11 Weeks
Current Rating (Amps):
1 A
Pitch - Mating:
-
Features:
Closed Frame
Mounting Type:
Through Hole
Termination Post Length:
0.140" (3.56mm)
Series:
Textool™
Packaging:
Bulk
ECCN:
EAR99
Contact Finish Thickness - Mating:
-
Pitch - Post:
-
Base Product Number:
228
Contact Finish - Post:
Gold
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 228-7474-55-1902. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product also features robust polyethersulfone (pes), glass filled housing material. The product has -55°c ~ 150°c operating temperature range. The product is supplied with 28 (2 x 14) positions/pins. Additionally, it features 30.0µin (0.76µm) of post thickness. Its contact is manufactured from highly durable beryllium copper. It comes in soic configuration. It has nice contact finishing of gold. It carries ul94 v-0 of material flammability rating. The 3m's product offers user-desired applications. The post (contact material) is designed from high stable beryllium copper. Its typical moisture sensitivity level is 1 (unlimited). The product features solder termination style. It has a long 11 weeks standard lead time. Additionally, the product's output is 1 a. The splendid features of the product include closed frame. The product is available in through hole configuration. The termination post is a 0.140" (3.56mm) long. The product textool™, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product is designated with the ear99 code number. Moreover, it corresponds to 228, a base product number of the product. It has possible gold contact post finishing.
