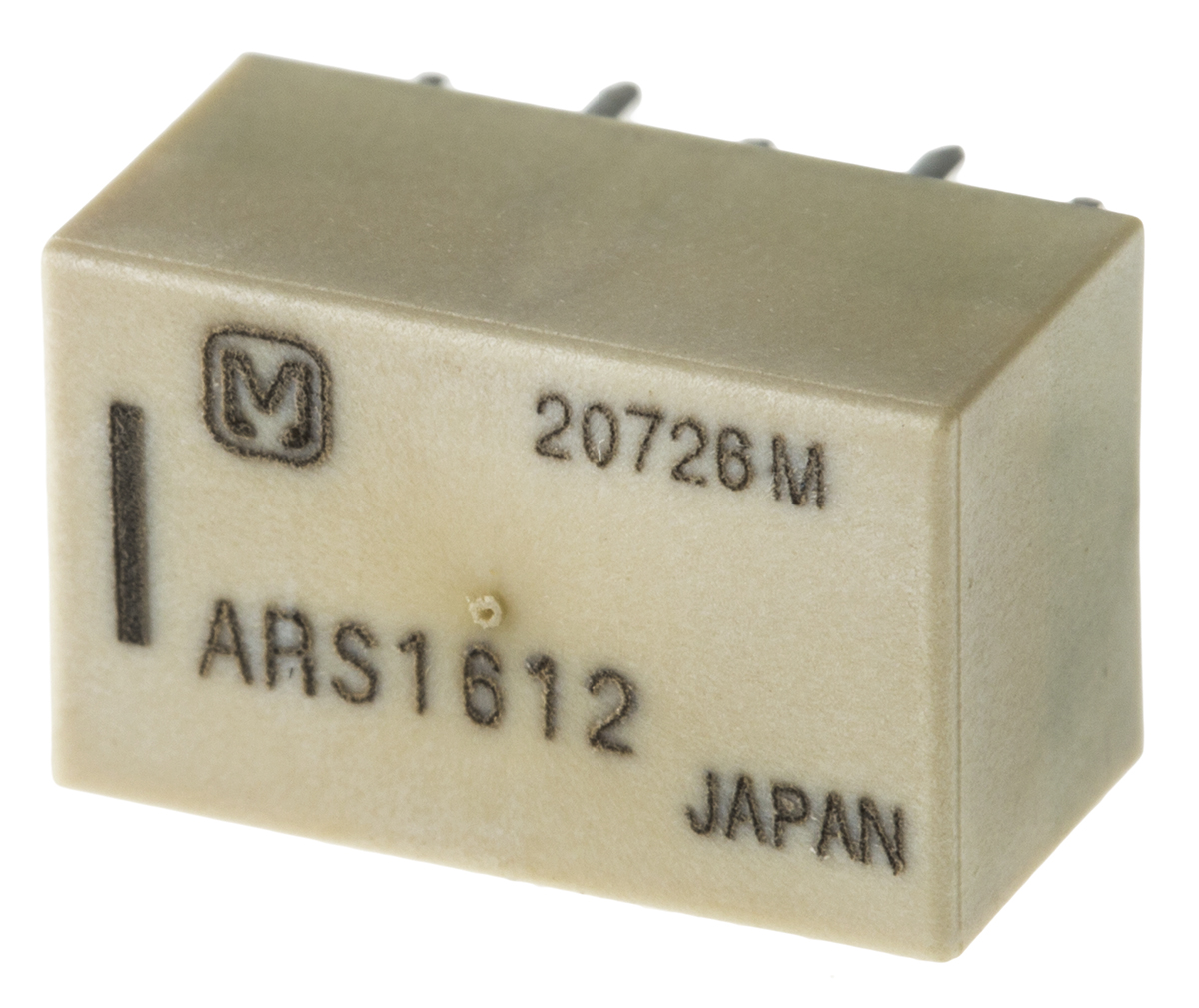

This is SPDT PCB Mount HF Relay 3GHz 12V dc manufactured by Panasonic. The manufacturer part number is ARS1612. It features a 100 mω contact resistance. The given dimensions of the product include 14 x 8.6 x 7.2mm. The coil voltage of the product is 12v dc. It holds up to 360ω coil resistance. It is capable of doing 1000000cycles in a lifetime . Additionally, it has 1.4 @ 3 ghz VSWR voltage standing wave ratio . The product's switching voltage is 30v. Robust coil power of 400mw. It has an impedance value of 50ω. It has a maximum operating temperature of +70°c. This is basically a hf relay. The product has -40 → +70°c of operating temperature range. Features a 35 db @ 3 ghz isolation. Latching Options - yes. The contact is equipped with spdt configuration. The product comes in 8.6mm depth. Allows 0.35 db @ 3 ghz of insertion loss. The product is available in pcb mount configuration. With about 3ghz maximum coil frequency . Moreover, the product offers a 10ms operating time including bounce . Its accurate length is 14mm. In addition, the height is 7.2mm. Whereas, the minimum operating temperature of the product is -40°c. The product is made from sturdy gold plated materials.
For more information please check the datasheets.
