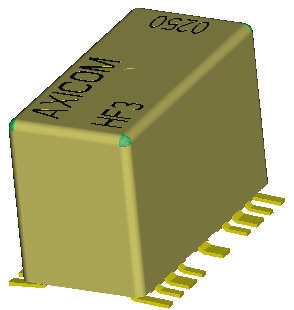

This is SPDT PCB Mount High Frequency Relay 12V dc manufactured by TE Connectivity. The manufacturer part number is 1462050-4. The given dimensions of the product include 14.6 x 7.2 x 10mm. The coil voltage of the product is 12v dc. It holds up to 1028ω coil resistance. The product complies with all safety standards, such as rohs compliant. Additionally, it has 1.45 @ 900mhz VSWR voltage standing wave ratio . The product's switching voltage is 220 v dc, 250v ac. Robust coil power of 140mw. It has an impedance value of 50 ω, 75ω. It has a maximum operating temperature of +85°c. The terminal is a through hole type. This is basically a hf relay. The product has -55 → +85°c of operating temperature range. Features a 80db isolation. The contact is equipped with spdt configuration. Its accurate length is 14.6mm. The product also provides special features, such as wash tight. Allows 0.4db of insertion loss. The product is available in pcb mount configuration. Moreover, the product offers a 5ms operating time including bounce . The product comes in 7.2mm depth. In addition, the height is 10mm. The rated contact current is 2a. Whereas, the minimum operating temperature of the product is -55°c. Moreover, it has about 220 v dc, 250v ac contact voltage . It has equipped with 1 poles. The product is made from sturdy gold plated materials.
For more information please check the datasheets.
