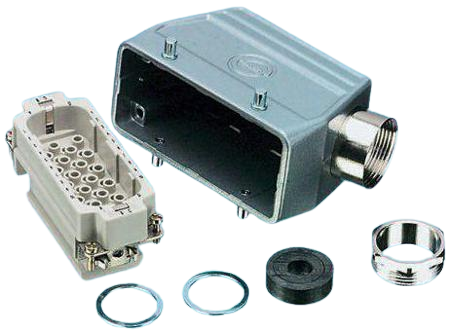

H-D 40 and 64 Way Assembled Plugs and Sockets Crimp termination Metal Body Approvals SEV, UL, CSA Standards VDE 0110//72, 0110b, 79, VDE 0627//86 H-D & H-DD Assembled connectors are type tested to 10A 250V a.c. and include the following features: High density contact loading gives more power and control connections in smaller shell sizes Machined contacts available to provide reliable interconnection and serviceability. Order contacts separately HD contacts are terminated simply and effectively using a quality 8 point indent crimp tool Coupled connectors have protection rating of IP65 Plug and socket inserts are interchangeable and a separate earth connection is made through all inserts. The earth is connected to metal body shells Dimensions (mm) Type Number of Ways A B C D Gland Plug 7//8 (see drawings) PG11 Plug 15 53 63 - - PG16 Plug 25 58 79 - - PG16 Plug 40 - - 93 61 PG21 Plug 64 - - 119.5 70 PG21 Surface Skt. 15 76 48 64 52 PG16 Surface Skt. 25 92 64 80 57 PG16 Surface Skt. 40 141 105 117 - PG21 Surface Skt. 64 167 132 143.5 - PG21 Panel Skt. 15 76 70 81 - Panel Skt. 25 92 86 96 - Panel Skt. 40 141 103 113 - Panel Skt. 64 167 130 140 - Ways: 7//8 way, Plastic Body 15, 25, 40, 64 Metal Body Operating Current 10A max Working Voltage 250V a.c. Test Voltage 4kV eff Contact Resistance ≤2mOhm Temperature Range -40°C to +125°C Environmental Rating 7 way IP65 15 and 25 way IP65 25, 40 and 64 way IP65 Warning Connectors should not be coupled and decoupled under electrical load. Connectors of the same or different series being mounted side by side may be protected against incorrect mating by the use of coding options.
For more information please check the datasheets.
