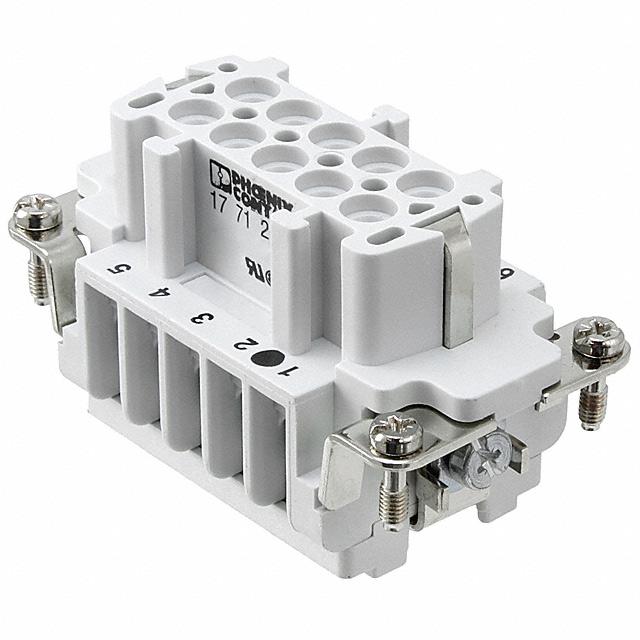

Phoenix Contact 1771202

1771202 Phoenix Contact
1771202
Phoenix Contact

Product Information

Current Rating:
16A
Mounting Type:
Panel Mount
Voltage Rating:
500 V
Gender:
Female
Body Orientation:
Right Angle
Termination Method:
Screw
Pole Format:
10P+E
Number of Rows:
2
Contact Plating:
Silver
Series:
B10, HC
Number of Contacts:
10
Type:
Connector Insert
CAD Drawing:
3D CAD Model
Contact Material:
Copper Alloy
HTSUS:
8536.69.8000
RoHS Status:
RoHS Compliant
Termination Style:
Screw
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-40°C ~ 125°C
Number of Positions:
10
Voltage Rating:
600V
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Gender:
Female
Connector Type:
Insert
Contact Finish:
Silver
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
-
Size:
B10
Current Rating (Amps):
15A
Color:
-
Series:
HEAVYCON® B10
ECCN:
EAR99
Contact Material:
Copper Alloy
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1771202. The product has a current rating of 16a. The product is available in panel mount configuration. Moreover, the product has a nominal 500 v voltage rating. In addition, female is the available "Gender" of the product. It has right angle body orientation. It allows screw termination method. While the pole has 10p+e format. It comes in 2 of rows. The high-quality silver is used as contact plating material. The product b10, hc, is a highly preferred choice for users. The product contains 10 contacts. It comes in connector insert configuration. It has 3d cad model CAD drawing . The product is made from sturdy copper alloy materials. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs compliant. Moreover, it has screw terminal style. The product also features robust polyamide (pa), nylon housing material. The product has -40°c ~ 125°c operating temperature range. The product carries possible position value of 10. Moreover, the product has a nominal 600v voltage rating. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . insert Connector type offer robust functionality. Furthermore, the product is galvanized with excellent silver contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product is available in b10 size. Additionally, the product's output is 15a. The product heavycon® b10, is a highly preferred choice for users. The product is designated with the ear99 code number.

pdf icon
HC-B 10-EBUS(Technical Reference)
pdf icon
B-Series Screw Termination Contact Inserts 25/Feb/2016(PCN Obsolescence/ EOL)
pdf icon
1771202(Datasheets)
