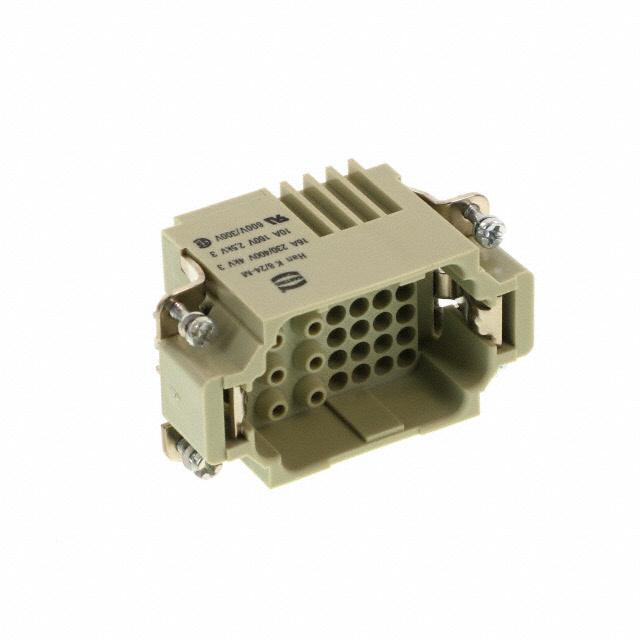

HARTING 09380323001

09380323001 HARTING
09380323001
09380323001
ET11509152
ET11509152
Heavy Duty Connector Inserts, Modules
Heavy Duty Connector Inserts, Modules
09380323001 HARTINGHARTING
HARTING

Product Information

Current Rating:
10 A, 16 A
Voltage Rating:
160 V, 400 V
Gender:
Male
Accessory Type:
Connector Housing
Series:
Han K
Number of Contacts:
33
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Crimp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-40°C ~ 125°C
Number of Positions:
8+24+Ground
title:
09380323001
REACH Status:
REACH Unaffected
edacadModel:
09380323001 Models
Material Flammability Rating:
UL94 HB
edacadModelUrl:
/en/models/3180712
Manufacturer:
HARTING
Voltage Rating:
-
Gender:
Male
Connector Type:
Insert without Contacts
Contact Finish:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Han®, Han® D
Size:
10B
standardLeadTime:
8 Weeks
Current Rating (Amps):
-
Color:
Gray
Series:
Han-Com®
Packaging:
Bulk
Contact Material:
-
Base Product Number:
09380323
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 09380323001. The product has a current rating of 10 a, 16 a. Moreover, the product has a nominal 160 v, 400 v voltage rating. In addition, male is the available "Gender" of the product. It is a type of connector housing accessory. The product han k, is a highly preferred choice for users. The product contains 33 contacts. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs3 compliant. Moreover, it has crimp terminal style. The product also features robust polyamide (pa), nylon housing material. The product has -40°c ~ 125°c operating temperature range. The product carries possible position value of 8+24+ground. In addition, it is reach unaffected. It carries ul94 hb of material flammability rating. The harting's product offers user-desired applications. insert without contacts Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of han®, han® d. The product is available in 10b size. It has a long 8 weeks standard lead time. It has a classic gray colour. The product han-com®, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to 09380323, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
09 38 032 3001 Data Sheet(Technical Reference)
pdf icon
Dimensional Drawing(Technical Reference)
pdf icon
09380323001 Datasheet(Datasheets)
pdf icon
09380323001 Drawing(Product Drawings)
