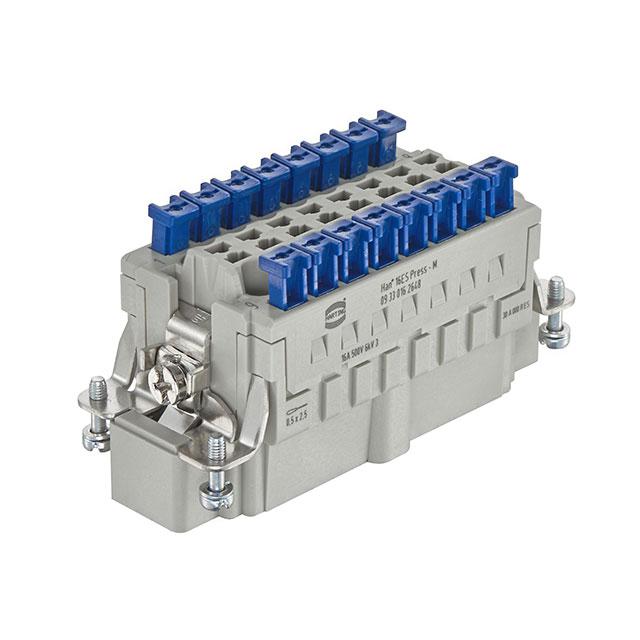

HARTING 09330162648

09330162648 HARTING
09330162648
09330162648
ET11113192
HARTING

Product Information

Current Rating:
16A
Mounting Type:
Panel Mount
Voltage Rating:
500 V
Gender:
Male
Body Orientation:
Straight
Termination Method:
Cage Clamp
Pole Format:
16P
Thread Size:
M3 x 10
Range:
Han ES
Number of Rows:
2
Contact Plating:
Silver
Series:
Han ES Press
Number of Contacts:
16
Type:
Connector Insert
Contact Material:
Copper Alloy
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Tension Clamp
Housing Material:
Polycarbonate (PC)
Operating Temperature:
-40°C ~ 125°C
Number of Positions:
16+Ground
title:
09330162648
REACH Status:
REACH Unaffected
edacadModel:
09330162648 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/6072572
Manufacturer:
HARTING
Voltage Rating:
500V
Gender:
Male
Connector Type:
Insert
Contact Finish:
Silver
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
-
Size:
16B
standardLeadTime:
11 Weeks
Current Rating (Amps):
16A
Color:
Gray
Series:
Han® ES Press
Packaging:
Bulk
Contact Material:
Copper Alloy
Base Product Number:
09330162
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 09330162648. The product has a current rating of 16a. The product is available in panel mount configuration. Moreover, the product has a nominal 500 v voltage rating. In addition, male is the available "Gender" of the product. It has straight body orientation. It allows cage clamp termination method. While the pole has 16p format. It has a typical thread size of m3 x 10. It features han es range. It comes in 2 of rows. The high-quality silver is used as contact plating material. The product han es press, is a highly preferred choice for users. The product contains 16 contacts. It comes in connector insert configuration. The product is made from sturdy copper alloy materials. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs3 compliant. Moreover, it has tension clamp terminal style. The product also features robust polycarbonate (pc) housing material. The product has -40°c ~ 125°c operating temperature range. The product carries possible position value of 16+ground. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The harting's product offers user-desired applications. Moreover, the product has a nominal 500v voltage rating. insert Connector type offer robust functionality. Furthermore, the product is galvanized with excellent silver contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product is available in 16b size. It has a long 11 weeks standard lead time. Additionally, the product's output is 16a. It has a classic gray colour. The product han® es press, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to 09330162, a base product number of the product. The product is designated with the ear99 code number.
