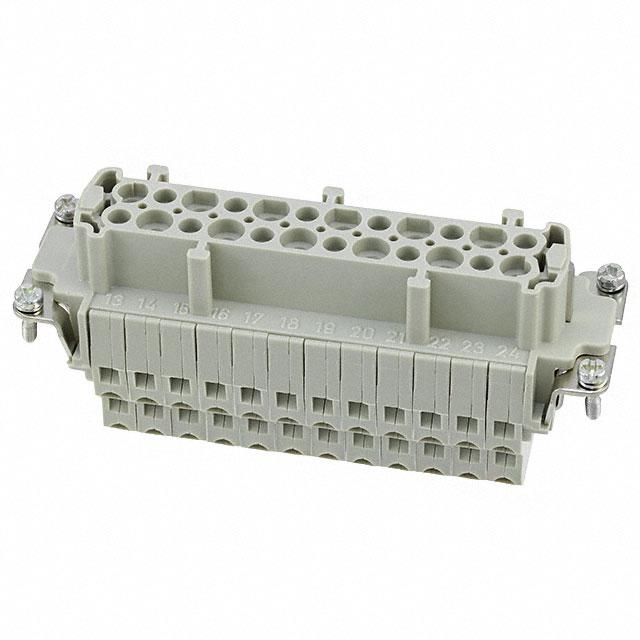

HARTING 09330242772

09330242772 HARTING
09330242772
HARTING

Product Information

Current Rating:
16A
IP Rating:
IP65
Gender:
Female
Body Orientation:
Straight
Voltage Rating:
500 V
Number of Rows:
2
Series:
Han EES
Number of Contacts:
24
Type:
Connector Insert
HTSUS:
8536.69.8000
RoHS Status:
ROHS3 Compliant
Termination Style:
Push In
Housing Material:
Polycarbonate (PC)
Operating Temperature:
-40°C ~ 125°C
Number of Positions:
24+Ground
Voltage Rating:
500V
REACH Status:
REACH Unaffected
edacadModel:
09330242772 Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4287838
Package:
Bulk
Gender:
Female
Connector Type:
Insert
Contact Finish:
Silver
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
-
Size:
24B
standardLeadTime:
8 Weeks
Current Rating (Amps):
16A
Color:
Gray
Series:
Han® ESS
Contact Material:
Copper Alloy
Base Product Number:
09330242
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 09330242772. The product has a current rating of 16a. It is IP rated with ip65. In addition, female is the available "Gender" of the product. It has straight body orientation. Moreover, the product has a nominal 500 v voltage rating. It comes in 2 of rows. The product han ees, is a highly preferred choice for users. The product contains 24 contacts. It comes in connector insert configuration. It is assigned with possible HTSUS value of 8536.69.8000. The product is rohs3 compliant. Moreover, it has push in terminal style. The product also features robust polycarbonate (pc) housing material. The product has -40°c ~ 125°c operating temperature range. The product carries possible position value of 24+ground. Moreover, the product has a nominal 500v voltage rating. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . insert Connector type offer robust functionality. Furthermore, the product is galvanized with excellent silver contact finishing. Its typical moisture sensitivity level is 1 (unlimited). The product is available in 24b size. It has a long 8 weeks standard lead time. Additionally, the product's output is 16a. It has a classic gray colour. The product han® ess, is a highly preferred choice for users. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 09330242, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
HAN 24 ESS-F Female Insert Drawing(Technical Reference)
pdf icon
09330242772 Datasheet(Datasheets)
pdf icon
09330242772 Drawing(Product Drawings)
pdf icon
09330242772(Reference Design Library)
