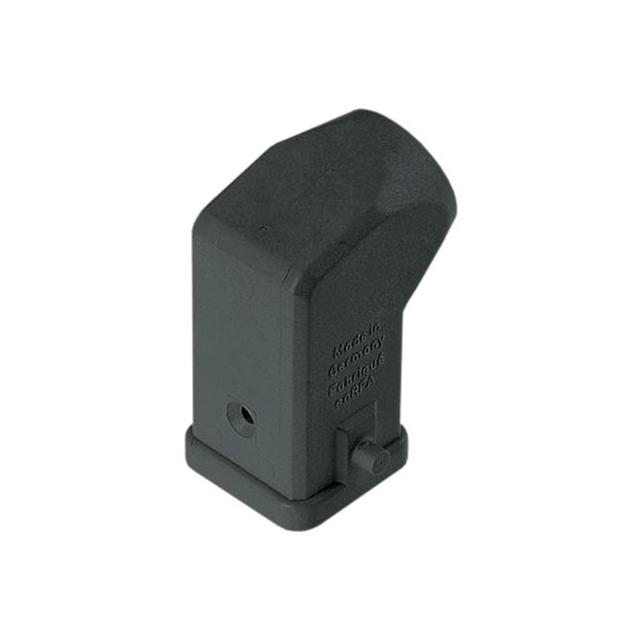

HARTING 09200030626

09200030626 HARTING
HARTING

Product Information

Style:
Side Entry
HTSUS:
8538.90.8180
RoHS Status:
ROHS3 Compliant
Thread Size:
PG11
Operating Temperature:
-40°C ~ 125°C
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Housing Finish:
-
REACH Status:
REACH Unaffected
edacadModel:
09200030626 Models
Housing Color:
Black
edacadModelUrl:
/en/models/4286941
Package:
Bulk
Connector Type:
Hood - 90°
Size / Dimension:
1.043" L x 1.043" W x 2.146" H (26.50mm x 26.50mm x 54.50mm)
Housing Material:
Thermoplastic
Ingress Protection:
IP44
Features:
-
Series:
Han® A
Lock Location:
Locking Clip (1) on Base Bottom
Size:
3A
Base Product Number:
09200030
ECCN:
EAR99
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 09200030626. Additionally, the product is designed with side entry Style. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. It has a typical thread size of pg11. The product has -40°c ~ 125°c operating temperature range. Its typical moisture sensitivity level is 1 (unlimited). In addition, it is reach unaffected. It has an integral black housing colour. It is shipped in bulk package . hood - 90° Connector type offer robust functionality. The product's diameters include 1.043" l x 1.043" w x 2.146" h (26.50mm x 26.50mm x 54.50mm). The product also features robust thermoplastic housing material. It is IP rated with ip44. The product han® a, is a highly preferred choice for users. Lock Type & Location Information: locking clip (1) on base bottom. The product is available in 3a size. Moreover, it corresponds to 09200030, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
End of Life 21/OCT/2021(PCN Obsolescence/ EOL)
pdf icon
09200030626(Datasheets)
pdf icon
09200030626 Drawing(Product Drawings)
pdf icon
09200030626 Datasheet(Reference Design Library)
