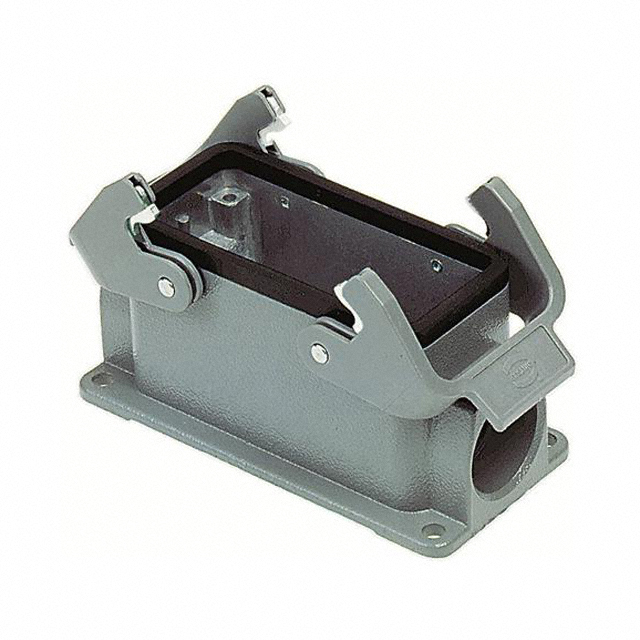

HARTING 09300160231

09300160231 HARTING
09300160231
HARTING

Product Information

Mounting Type:
Bulkhead Mount
IP Rating:
IP65
Series:
Han B
Thread Size:
PG29
Manufacturer Size Code:
16B
Series Number:
930
Type:
Connector Housing
Size:
16B
Style:
Side Entry
HTSUS:
8538.90.8180
RoHS Status:
ROHS3 Compliant
Thread Size:
PG29
Operating Temperature:
-40°C ~ 125°C
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Housing Finish:
Powder Coated
title:
09300160231
REACH Status:
REACH Unaffected
edacadModel:
09300160231 Models
Housing Color:
Gray
edacadModelUrl:
/en/models/3180508
Manufacturer:
HARTING
Connector Type:
Base - Box Mount
Size / Dimension:
4.606" L x 2.244" W x 3.181" H (117.00mm x 57.00mm x 80.80mm)
standardLeadTime:
8 Weeks
Housing Material:
Aluminum, Die Cast
Ingress Protection:
IP65 - Dust Tight, Water Resistant
Features:
-
Series:
Han® B
Lock Location:
Locking Clip (2) on Base Bottom
Packaging:
Bulk
Size:
16B
Base Product Number:
09300160
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by HARTING. The manufacturer part number is 09300160231. The product is available in bulkhead mount configuration. It is IP rated with ip65. The product han b, is a highly preferred choice for users. It has a typical thread size of pg29. Whereas, the 16b is the manufacture's size code. It carries [Serial Number] serial number. It comes in connector housing configuration. The product is available in 16b size. Additionally, the product is designed with side entry Style. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs3 compliant. The product has -40°c ~ 125°c operating temperature range. Its typical moisture sensitivity level is 1 (unlimited). The product's housing has finished with a rugged powder coated. In addition, it is reach unaffected. It has an integral gray housing colour. The harting's product offers user-desired applications. base - box mount Connector type offer robust functionality. The product's diameters include 4.606" l x 2.244" w x 3.181" h (117.00mm x 57.00mm x 80.80mm). It has a long 8 weeks standard lead time. The product also features robust aluminum, die cast housing material. It is IP rated with ip65 - dust tight, water resistant. The product han® b, is a highly preferred choice for users. Lock Type & Location Information: locking clip (2) on base bottom. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to 09300160, a base product number of the product. The product is designated with the ear99 code number.
