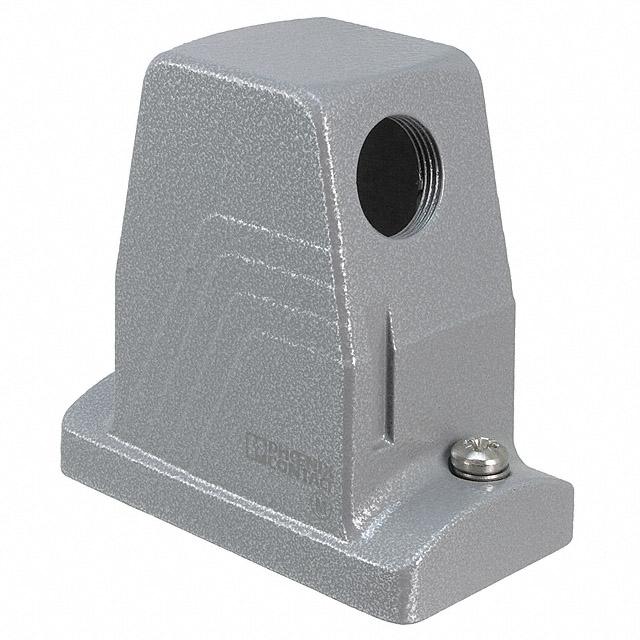

Phoenix Contact 1690082

1690082 Phoenix Contact
1690082
Phoenix Contact

Product Information

Mounting Type:
Panel Mount
IP Rating:
IP66, IP68, IP69K
Series:
B10
Body Orientation:
Straight
Thread Size:
M25
Termination Method:
Screw
Type:
Sleeve Housing
CAD Drawing:
3D CAD Model
Style:
Side Entry
HTSUS:
8538.90.8180
RoHS Status:
RoHS Compliant
Thread Size:
M25
Operating Temperature:
-40°C ~ 125°C
Moisture Sensitivity Level (MSL):
Not Applicable
Housing Finish:
Powder Coated
Housing Color:
Gray
Manufacturer:
Phoenix Contact
Connector Type:
Hood
Size / Dimension:
4.134" L x 2.244" W x 3.937" H (105.00mm x 57.00mm x 100.00mm)
Housing Material:
Aluminum, Die Cast
Ingress Protection:
IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Features:
-
Series:
HEAVYCON-ADVANCE®
Lock Location:
Screw Locks on Hood
Packaging:
Bulk
Size:
B10
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1690082. The product is available in panel mount configuration. It is IP rated with ip66, ip68, ip69k. The product b10, is a highly preferred choice for users. It has straight body orientation. It has a typical thread size of m25. It allows screw termination method. It comes in sleeve housing configuration. It has 3d cad model CAD drawing . Additionally, the product is designed with side entry Style. It is assigned with possible HTSUS value of 8538.90.8180. The product is rohs compliant. The product has -40°c ~ 125°c operating temperature range. Its typical moisture sensitivity level is not applicable. The product's housing has finished with a rugged powder coated. It has an integral gray housing colour. The phoenix contact's product offers user-desired applications. hood Connector type offer robust functionality. The product's diameters include 4.134" l x 2.244" w x 3.937" h (105.00mm x 57.00mm x 100.00mm). The product also features robust aluminum, die cast housing material. It is IP rated with ip66/ip68/ip69k - dust tight, water resistant, waterproof. The product heavycon-advance®, is a highly preferred choice for users. Lock Type & Location Information: screw locks on hood. In addition, bulk is the available packaging type of the product. The product is available in b10 size. The product is designated with the ear99 code number.

pdf icon
Housing - HC-B 10-TMS-100/O1STM25S-STA - 1690082(Technical Reference)
pdf icon
Multiple Devices 03/Jun/2016(PCN Obsolescence/ EOL)
pdf icon
1690082(Datasheets)
