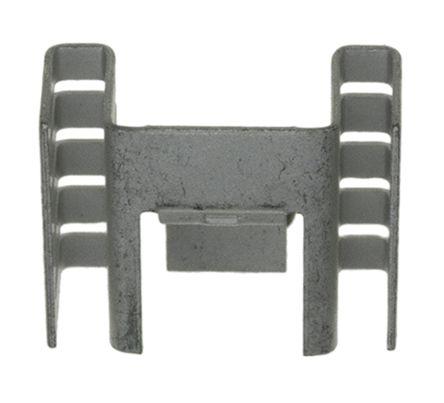

Heatsink, D2 PAK (TO-263), 11°C/W, 25.4 x 19.38 x 11.43mm, Horizontal Mount

7109DG Heatsink, D2 PAK (TO-263), 11°C/W, 25.4 x 19.38 x 11.43mm, Horizontal Mount
AAVID THERMALLOY

Product Information

Finish:
Tin Plated
Dimensions:
25.4 x 19.38 x 11.43mm
Application:
Through Hole Discrete Semiconductors
Series:
7109
Thermal Resistance:
11°C/W
Material:
Aluminium
Height:
11.43mm
Width:
19.38mm
Length:
25.4mm
Package Type:
TO-263
Mounting:
Horizontal
For Use With:
D2 PAK (TO-263)
Special Features:
The Device and the Heat Sink are Soldered Directly to a Modified Drain Pad Creating a Thermal Transfer Path from Package Tab to the Heat Sink
RoHs Compliant
Checking for live stock

This is Heatsink D2 PAK (TO-263) 11°C/W 25.4 x 19.38 x 11.43mm Horizontal Mount manufactured by AAVID THERMALLOY. The manufacturer part number is 7109DG. A quality product with a nice tin plated finish. The given dimensions of the product include 25.4 x 19.38 x 11.43mm. Applications Information involves through hole discrete semiconductors. The product 7109, is a highly preferred choice for users. Allows 11°c/w thermal resistance. The product is made from highly stable and reliable aluminium. In addition, the height is 11.43mm. Furthermore, the product is 19.38mm wide. Its accurate length is 25.4mm. The package is a sort of to-263. It is offered with an attractive horizontal mounting . The product is highly suitable for d2 pak (to-263). The product also provides special features, such as the device and the heat sink are soldered directly to a modified drain pad creating a thermal transfer path from package tab to the heat sink.
