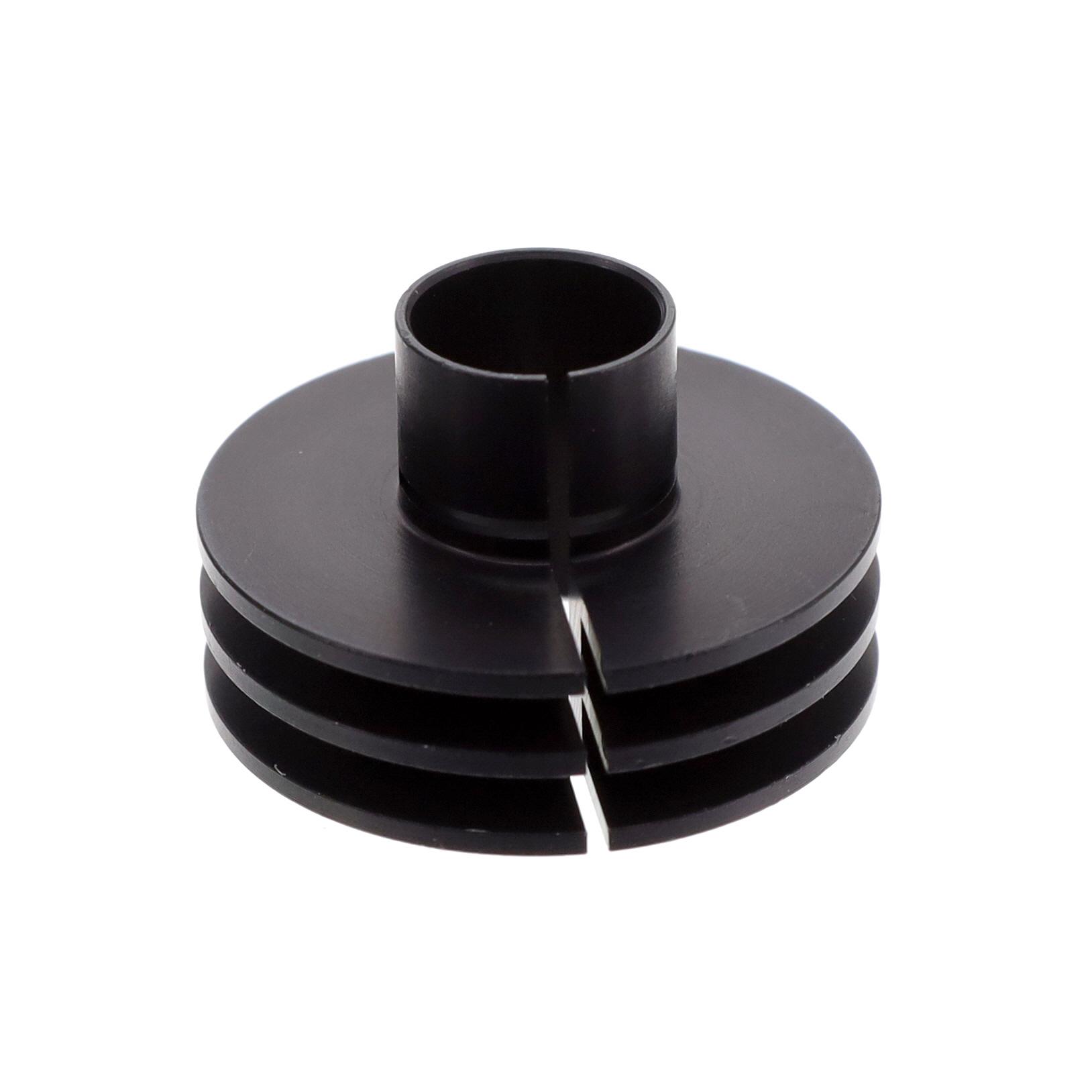

Aavid, Thermal Division of Boyd Corporation 322805B00000G

322805B00000G Aavid, Thermal Division of Boyd Corporation
Aavid, Thermal Division of Boyd Corporation

Product Information

Material Finish:
Black Anodized
HTSUS:
8473.30.5100
RoHS Status:
ROHS3 Compliant
Attachment Method:
Press Fit
Width:
-
Fin Height:
0.531" (13.50mm)
Type:
Top Mount
Power Dissipation @ Temperature Rise:
1.0W @ 50°C
Material:
Aluminum
Shape:
Cylindrical
Package:
Bulk
Thermal Resistance @ Natural:
40.00°C/W
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
-
standardLeadTime:
9 Weeks
Diameter:
0.315" (8.00mm) ID, 0.875" (22.23mm) OD
Series:
-
Package Cooled:
TO-5
Thermal Resistance @ Forced Air Flow:
30.00°C/W @ 200 LFM
Base Product Number:
322805
ECCN:
EAR99
Checking for live stock

This is manufactured by Aavid, Thermal Division of Boyd Corporation. The manufacturer part number is 322805B00000G. It is nicely plated with splendid finishing material, such as black anodized. It is assigned with possible HTSUS value of 8473.30.5100. The product is rohs3 compliant. It employs the press fit method for attachment. It also has a 0.531" (13.50mm) fin height. It comes in top mount configuration. The given power dissipation and temperature rise include 1.0w @ 50°c. The product is made from highly stable and reliable aluminum. It is a cylindrical product with unique specifications. It is shipped in bulk package . The natural thermal resistance of the product includes 40.00°c/w. Its typical moisture sensitivity level is not applicable. It has a long 9 weeks standard lead time. Its diameter is 0.315" (8.00mm) id, 0.875" (22.23mm) od. to-5 is the value of product cooled package. 30.00°c/w @ 200 lfm is the given thermal resistance at forced air flow. Moreover, it corresponds to 322805, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
322x0xB00000G Datasheet(Datasheets)
pdf icon
Standard Heatsinks Catalog(Datasheets)
pdf icon
Heat Sink Fabrications Guide(Other Related Documents)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 322805B00000G on website for other similar products.
We accept all major payment methods for all products including ET16679092. Please check your shopping cart at the time of order.
You can order Aavid, Thermal Division of Boyd Corporation brand products with 322805B00000G directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Heat Sinks category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Aavid, Thermal Division of Boyd Corporation 322805B00000G. You can also check on our website or by contacting our customer support team for further order details on Aavid, Thermal Division of Boyd Corporation 322805B00000G.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16679092 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Aavid, Thermal Division of Boyd Corporation" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16679092.
Yes. We ship 322805B00000G Internationally to many countries around the world.
