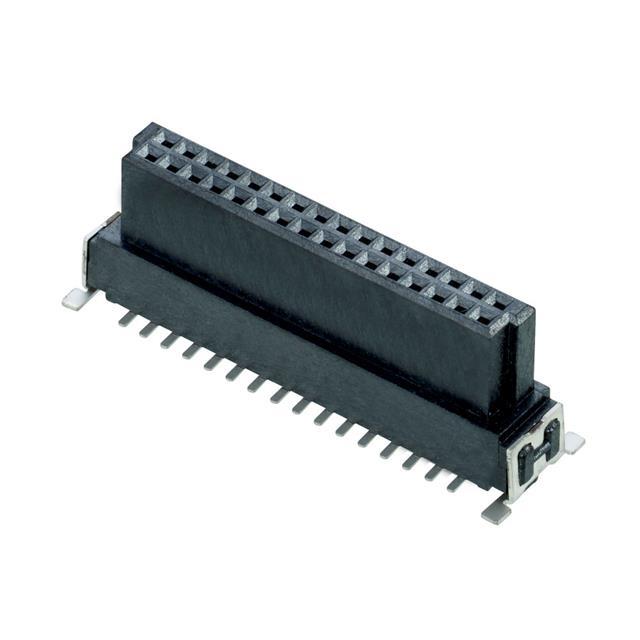

Harwin Inc. M55-6013242R

M55-6013242R Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
32
Contact Length - Post:
-
Insulation Height:
0.356" (9.05mm)
Voltage Rating:
100VAC
REACH Status:
REACH Unaffected
Applications:
Automotive, General Purpose, Industrial
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
10.8mm, 12.3mm, 13.9mm
Package:
Tape & Reel (TR)
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
1.00µin (0.025µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
17 Weeks
Current Rating (Amps):
1.2A
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide, Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
Archer Kontrol
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Insulation Material:
Liquid Crystal Polymer (LCP)
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M55-6013242R. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 32. 0.356" (9.05mm) of insulation height. Moreover, the product has a nominal 100vac voltage rating. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 10.8mm, 12.3mm, 13.9mm. It is shipped in tape & reel (tr) package . It carries 0.050" (1.27mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 1.00µin (0.025µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 17 weeks standard lead time. Additionally, the product's output is 1.2a. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide, pick and place, solder retention. The product is available in surface mount configuration. The product archer kontrol, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. It has a robust liquid crystal polymer (lcp) insulation material. The product is designated with the ear99 code number.
