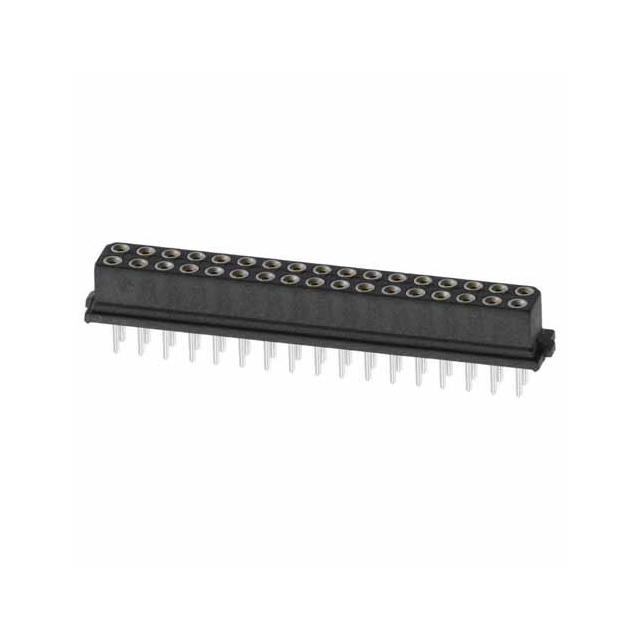

Harwin Inc. B5741-234-F-T-0

B5741-234-F-T-0 Harwin Inc.
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin-Lead
HTSUS:
8536.69.4040
RoHS Status:
RoHS non-compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
137.8µin (3.50µm)
Number of Positions:
34
Contact Length - Post:
0.118" (3.00mm)
Insulation Height:
0.202" (5.14mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Applications:
Automotive, General Purpose, Military
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Circular
Contact Finish Thickness - Mating:
12.0µin (0.30µm)
Voltage Rating:
800VAC/DC
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Locking Ramp
Termination:
Solder
standardLeadTime:
18 Weeks
Current Rating (Amps):
2.2A
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
Datamate L-Tek
Packaging:
Tube
Mated Stacking Heights:
-
Contact Type:
Female Socket
Contact Material:
Beryllium Copper
Insulation Material:
Polyester, Glass Filled
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is B5741-234-F-T-0. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible tin-lead contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs non-compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 137.8µin (3.50µm) of post thickness. The product carries possible position value of 34. 0.118" (3.00mm) is the given possible contact length (post) values. 0.202" (5.14mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, military. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. However, 12.0µin (0.30µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 800vac/dc voltage rating. It carries 0.079" (2.00mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, locking ramp is the Fastening Type of the product. The product features solder termination style. It has a long 18 weeks standard lead time. Additionally, the product's output is 2.2a. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole configuration. The product datamate l-tek, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has typical contact type of female socket. The product is made from sturdy beryllium copper materials. It has a robust polyester, glass filled insulation material. The product is designated with the ear99 code number.

pdf icon
M80, M83 Series Spec Sheet(Datasheets)
pdf icon
M80-887yyyy Drawing(2D Drawings)
pdf icon
M80-001(Other Related Documents)
pdf icon
M80-0110001(Other Related Documents)
pdf icon
Harwin REACH(Environmental Information)
