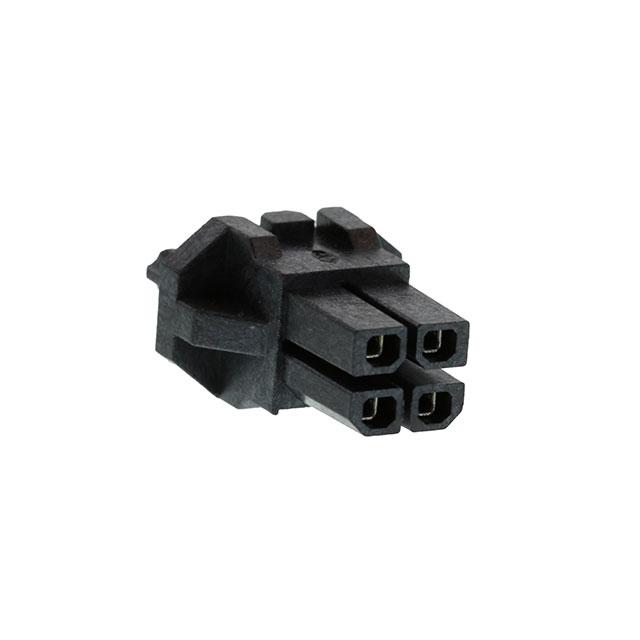

Molex 0447690401

0447690401 Molex
0447690401
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
4
Insulation Height:
0.535" (13.60mm)
Voltage Rating:
250VAC
REACH Status:
REACH Unaffected
edacadModel:
0447690401 Models
Applications:
General Purpose, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/513216
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
16.86mm
Insulation Material:
Liquid Crystal Polymer (LCP), Glass Filled
Package:
Tray
Row Spacing - Mating:
0.118" (3.00mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
29 Weeks
Current Rating (Amps):
5A
Contact Length - Post:
0.134" (3.40mm)
Pitch - Mating:
0.118" (3.00mm)
Ingress Protection:
-
Features:
Blind Mating, Board Guide
Mounting Type:
Through Hole
Series:
Micro-Fit 3.0 BMI 44769
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
044769
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0447690401. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 4. 0.535" (13.60mm) of insulation height. Moreover, the product has a nominal 250vac voltage rating. In addition, it is reach unaffected. The product is widely employed in general purpose, telecommunications. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, black is the insulation color of the product. It has a typical square shape. The mated stacking heights of a bespoke product includes 16.86mm. It has a robust liquid crystal polymer (lcp), glass filled insulation material. It is shipped in tray package . It carries 0.118" (3.00mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 29 weeks standard lead time. Additionally, the product's output is 5a. 0.134" (3.40mm) is the given possible contact length (post) values. It has 0.118" (3.00mm) of pitch-mating value. The splendid features of the product include blind mating, board guide. The product is available in through hole configuration. The product micro-fit 3.0 bmi 44769, is a highly preferred choice for users. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 044769, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
44769-0401 RoHS Cert of Compliance(Environmental Information)
pdf icon
Mult Devs Supplier 20/Oct/2022(PCN Assembly/Origin)
pdf icon
Tooling Replacement 15/Nov/2011(PCN Design/Specification)
pdf icon
Micro-Fit BMI Spec(Datasheets)
pdf icon
44769-xx0x(Datasheets)
pdf icon
44769-0401.pdf(3D Drawings)
