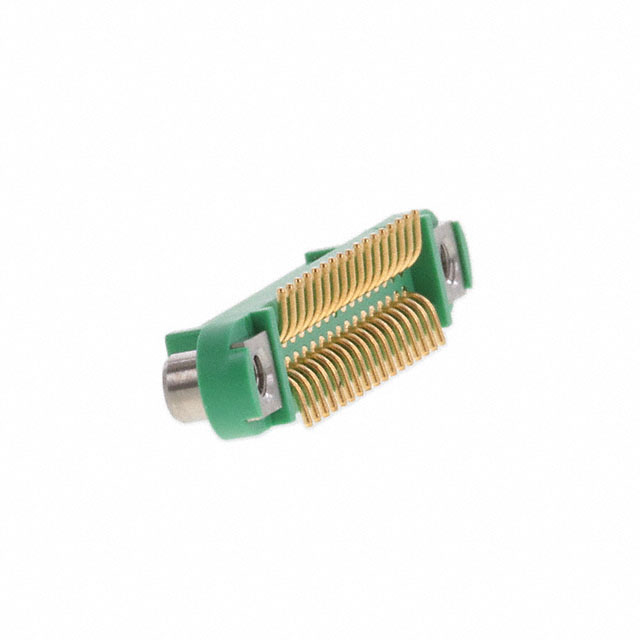

Harwin Inc. G125-FS13405F2P

G125-FS13405F2P Harwin Inc.
G125-FS13405F2P
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 150°C
Contact Finish Thickness - Post:
8.00µin (0.203µm)
Number of Positions:
34
title:
G125-FS13405F2P
Insulation Height:
0.207" (5.25mm)
Insulation Color:
Green
REACH Status:
REACH Unaffected
edacadModel:
G125-FS13405F2P Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9739360
Contact Shape:
Circular
Mated Stacking Heights:
7.33mm, 7.4mm
Voltage Rating:
450V
Row Spacing - Mating:
0.049" (1.25mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
8.00µin (0.203µm)
Fastening Type:
Screw Lock
Termination:
Solder
standardLeadTime:
14 Weeks
Current Rating (Amps):
2A
Contact Length - Post:
-
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
Pick and Place, Polarizing Key
Mounting Type:
Surface Mount
Series:
Gecko SL Reverse Fix
Packaging:
Strip
Insulation Material:
Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Contact Type:
Female Socket
Contact Material:
Copper Alloy
Base Product Number:
G125-FS1
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is G125-FS13405F2P. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 150°c operating temperature range. Additionally, it features 8.00µin (0.203µm) of post thickness. The product carries possible position value of 34. 0.207" (5.25mm) of insulation height. In addition, green is the insulation color of the product. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. The mated stacking heights of a bespoke product includes 7.33mm, 7.4mm. Moreover, the product has a nominal 450v voltage rating. It carries 0.049" (1.25mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 8.00µin (0.203µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, screw lock is the Fastening Type of the product. The product features solder termination style. It has a long 14 weeks standard lead time. Additionally, the product's output is 2a. It has 0.049" (1.25mm) of pitch-mating value. The splendid features of the product include pick and place, polarizing key. The product is available in surface mount configuration. The product gecko sl reverse fix, is a highly preferred choice for users. In addition, strip is the available packaging type of the product. It has a robust polyamide (pa4t), nylon 4t, glass filled, halogen free insulation material. It has typical contact type of female socket. The product is made from sturdy copper alloy materials. Moreover, it corresponds to g125-fs1, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
G125-FS10605F2P(Product Brief)
pdf icon
G125--FS1xx05F2P.pdf Drawing(2D Drawings)
pdf icon
Harwin REACH(Environmental Information)
pdf icon
G125 Spec Sheet(Datasheets)
pdf icon
G125-224069600(Other Related Documents)
pdf icon
G125-2040696L0(Other Related Documents)
