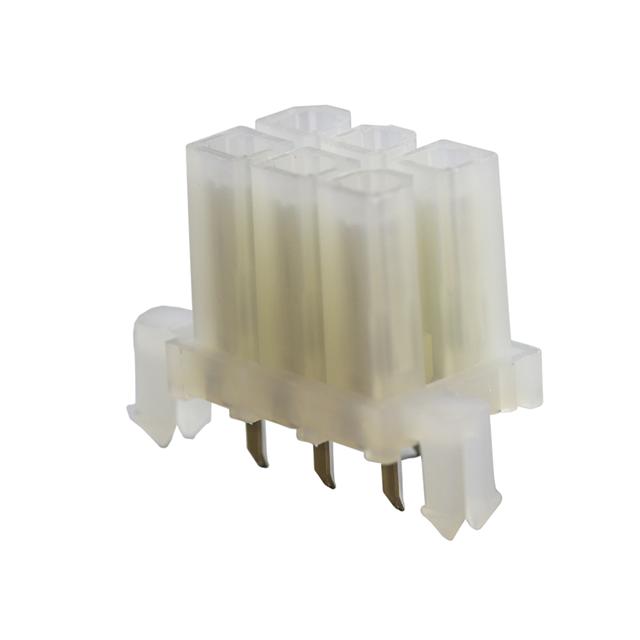

Molex 0015247064

0015247064 Molex
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
6
Insulation Height:
0.446" (11.33mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
edacadModel:
0015247064 Models
Applications:
General Purpose, Industrial, Medical, Telecommunications
Number of Rows:
2
Material Flammability Rating:
UL94 V-2
edacadModelUrl:
/en/models/3122242
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
600V
Row Spacing - Mating:
0.165" (4.20mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
29 Weeks
Current Rating (Amps):
-
Contact Length - Post:
0.138" (3.50mm)
Pitch - Mating:
0.165" (4.20mm)
Ingress Protection:
-
Features:
Blind Mating, Board Lock
Mounting Type:
Through Hole
Series:
Mini-Fit BMI 42385
Packaging:
Bulk
Insulation Material:
Polyamide (PA66), Nylon 6/6
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
001524
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0015247064. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 6. 0.446" (11.33mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. The product is widely employed in general purpose, industrial, medical, telecommunications. It comes in 2 of rows. It carries ul94 v-2 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 600v voltage rating. It carries 0.165" (4.20mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 29 weeks standard lead time. 0.138" (3.50mm) is the given possible contact length (post) values. It has 0.165" (4.20mm) of pitch-mating value. The splendid features of the product include blind mating, board lock. The product is available in through hole configuration. The product mini-fit bmi 42385, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa66), nylon 6/6 insulation material. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 001524, a base product number of the product. The product is designated with the ear99 code number.
