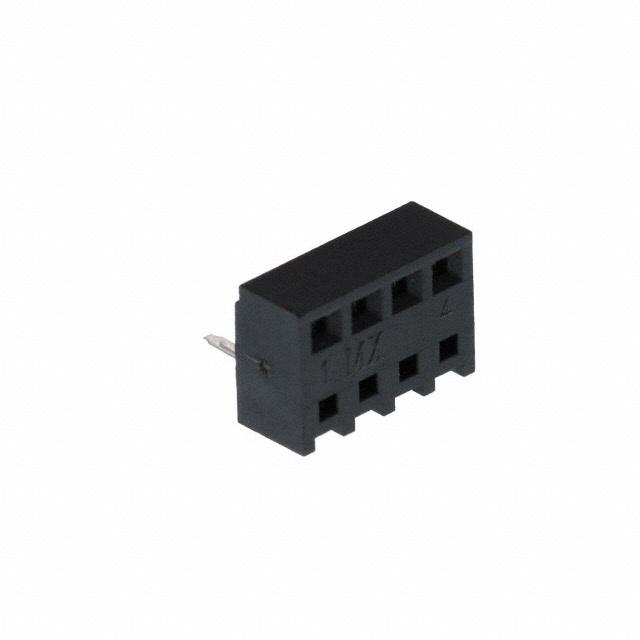

Molex 0448120004

0448120004 Molex
0448120004
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Number of Positions:
4
Insulation Height:
0.177" (4.50mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
edacadModel:
0448120004 Models
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/698101
Contact Finish Thickness - Mating:
200.0µin (5.08µm)
Voltage Rating:
250VAC, 176VDC
Row Spacing - Mating:
-
Connector Type:
Receptacle, Bottom or Top Entry
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Female Socket
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
0.136" (3.46mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
KK254, 44812
Packaging:
Tray
Mated Stacking Heights:
-
Contact Finish - Post:
Tin
Base Product Number:
044812
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0448120004. It has nice contact finishing of tin. Additionally, the product is designed with board to board Style. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 4. 0.177" (4.50mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. However, 200.0µin (5.08µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 250vac, 176vdc voltage rating. receptacle, bottom or top entry Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of female socket. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. 0.136" (3.46mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The product is available in through hole configuration. The product kk254, 44812, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has possible tin contact post finishing. Moreover, it corresponds to 044812, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
44812-0004 RoHS Cert of Compliance(Environmental Information)
pdf icon
Multiple Devices Plating Location 02/Dec/2020(PCN Assembly/Origin)
pdf icon
44812 Assemblies Alloy 15/Sep/2016(PCN Design/Specification)
pdf icon
04481200yy EOL/Obs 31/Jul/2023(PCN Obsolescence/ EOL)
pdf icon
44812-0004.pdf(3D Drawings)
pdf icon
44812 Series Drawing(Product Drawings)
