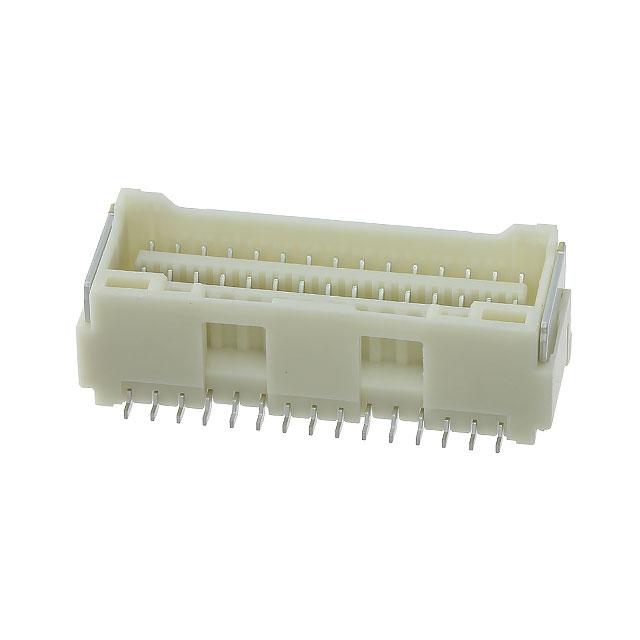

Molex 5031543090

5031543090 Molex
5031543090
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
39.4µin (1.00µm)
Number of Positions:
30
Insulation Height:
0.344" (8.75mm)
Voltage Rating:
-
REACH Status:
REACH Unaffected
edacadModel:
5031543090 Models
Applications:
Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2819089
Insulation Color:
Beige
Contact Shape:
-
Mated Stacking Heights:
-
Insulation Material:
Resin
Package:
Tape & Reel (TR)
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
13 Weeks
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
0.059" (1.50mm)
Ingress Protection:
-
Features:
Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
CLIK-Mate 503154
Contact Type:
Forked
Contact Material:
Copper Alloy
Base Product Number:
503154
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5031543090. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 39.4µin (1.00µm) of post thickness. The product carries possible position value of 30. 0.344" (8.75mm) of insulation height. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, lighting, medical. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. In addition, beige is the insulation color of the product. It has a robust resin insulation material. It is shipped in tape & reel (tr) package . receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 13 weeks standard lead time. It has 0.059" (1.50mm) of pitch-mating value. The splendid features of the product include pick and place, solder retention. The product is available in surface mount configuration. The product clik-mate 503154, is a highly preferred choice for users. It has typical contact type of forked. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 503154, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
5031543090 RoHS Cert of Compliance(Environmental Information)
pdf icon
5031543090(Datasheets)
pdf icon
503154-3090.pdf(3D Drawings)
