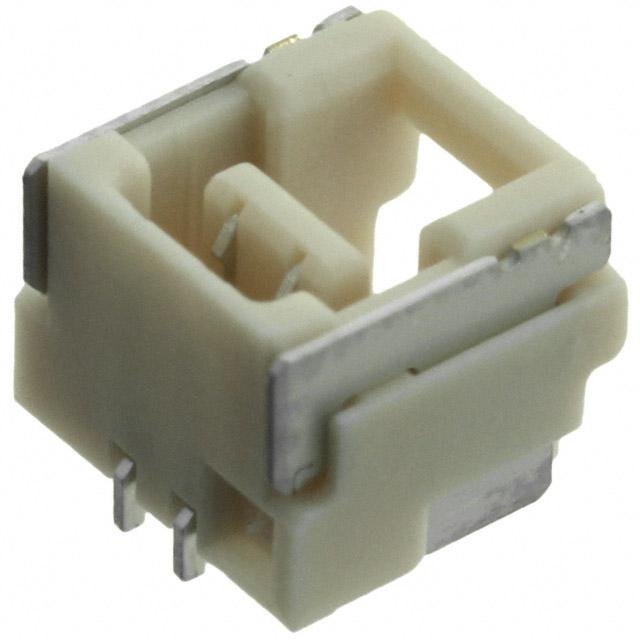

Molex 5023860270

5023860270 Molex
5023860270
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
39.4µin (1.00µm)
Number of Positions:
2
title:
5023860270
Insulation Height:
0.215" (5.45mm)
Insulation Color:
Natural
REACH Status:
REACH Unaffected
edacadModel:
5023860270 Models
Applications:
Automotive, General Purpose, Industrial, Lighting, Medical
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2700549
Contact Shape:
-
Mated Stacking Heights:
-
Voltage Rating:
50V
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
39.4µin (1.00µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
20 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
-
Pitch - Mating:
0.049" (1.25mm)
Ingress Protection:
-
Features:
Solder Retention
Mounting Type:
Surface Mount, Right Angle
Series:
CLIK-Mate 502386
Packaging:
Tape & Reel (TR)
Insulation Material:
Resin
Contact Type:
Forked
Contact Material:
Copper Alloy
Base Product Number:
502386
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 5023860270. It has nice contact finishing of tin. Additionally, the product is designed with board to cable/wire Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features 39.4µin (1.00µm) of post thickness. The product carries possible position value of 2. 0.215" (5.45mm) of insulation height. In addition, natural is the insulation color of the product. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial, lighting, medical. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. Moreover, the product has a nominal 50v voltage rating. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 39.4µin (1.00µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 20 weeks standard lead time. Additionally, the product's output is 1a. It has 0.049" (1.25mm) of pitch-mating value. The splendid features of the product include solder retention. The product is available in surface mount, right angle configuration. The product clik-mate 502386, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust resin insulation material. It has typical contact type of forked. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 502386, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
5023860270 RoHS Cert of Compliance(Environmental Information)
pdf icon
Metal Strips Supplier 01/Jun/2018(PCN Assembly/Origin)
pdf icon
Retraction of Supplier 04/Mar/2019(PCN Other)
pdf icon
5023860270(Datasheets)
pdf icon
502386-0270.pdf(3D Drawings)
