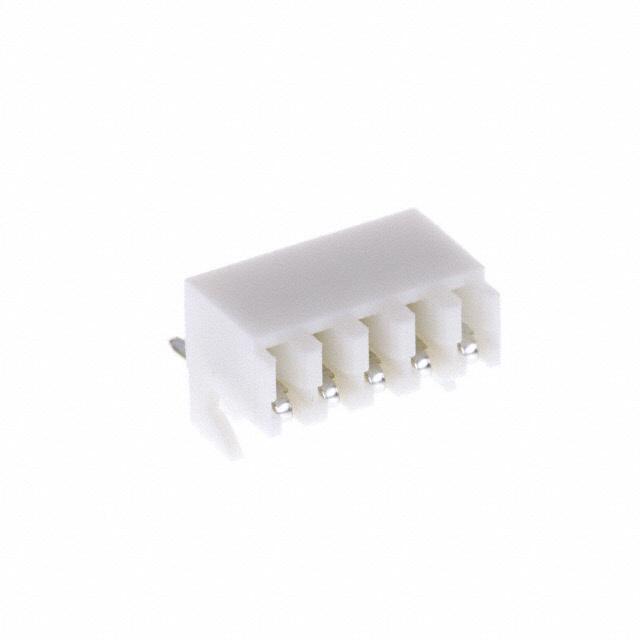

Molex 0022142054

0022142054 Molex
0022142054
Molex

Product Information

Contact Finish - Mating:
Tin
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 80°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
5
title:
0022142054
Insulation Height:
0.311" (7.90mm)
Insulation Color:
White
REACH Status:
REACH Unaffected
edacadModel:
0022142054 Models
Applications:
Automotive, General Purpose, Medical, Telecommunications
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/26525
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
250VAC
Row Spacing - Mating:
-
Connector Type:
Receptacle, Bottom Entry
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
100.0µin (2.54µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
22 Weeks
Current Rating (Amps):
2.5A
Contact Length - Post:
0.132" (3.35mm)
Pitch - Mating:
0.100" (2.54mm)
Ingress Protection:
-
Features:
Board Hooks
Mounting Type:
Through Hole
Series:
KK254, 4455
Packaging:
Tray
Insulation Material:
Polyamide (PA), Nylon
Contact Type:
Non-Gendered
Contact Material:
Brass
Base Product Number:
002214
ECCN:
EAR99
Checking for live stock

This is manufactured by Molex. The manufacturer part number is 0022142054. It has nice contact finishing of tin. Additionally, the product is designed with board to board or cable Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 80°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 5. 0.311" (7.90mm) of insulation height. In addition, white is the insulation color of the product. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, medical, telecommunications. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. Moreover, the product has a nominal 250vac voltage rating. receptacle, bottom entry Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 100.0µin (2.54µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 22 weeks standard lead time. Additionally, the product's output is 2.5a. 0.132" (3.35mm) is the given possible contact length (post) values. It has 0.100" (2.54mm) of pitch-mating value. The splendid features of the product include board hooks. The product is available in through hole configuration. The product kk254, 4455, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. It has typical contact type of non-gendered. The product is made from sturdy brass materials. Moreover, it corresponds to 002214, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
22-14-2054 RoHS Cert of Compliance(Environmental Information)
pdf icon
0022142yy4 Supplier Change 20/Jun/2022(PCN Assembly/Origin)
pdf icon
Resin Color 01/Jan/2002(PCN Obsolescence/ EOL)
pdf icon
10-07 Prod Spec(Datasheets)
pdf icon
22-14-2054(Datasheets)
pdf icon
22-14-2054.pdf(3D Drawings)
