Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
10.0µin (0.25µm)
Number of Positions:
8 (6 + 2 Power)
title:

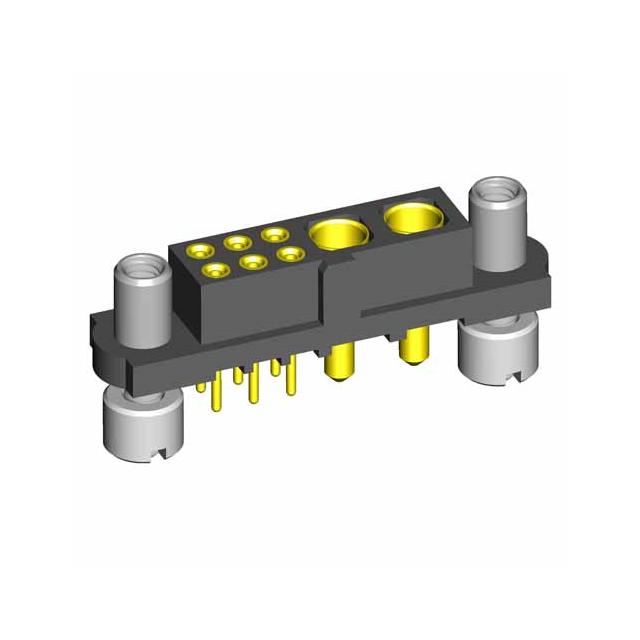

M80-4T10605F9-02-321-00-000
Insulation Height:
0.205" (5.20mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
edacadModel:
M80-4T10605F9-02-321-00-000 Models
Applications:
Automotive, General Purpose, Military
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/9827768
Contact Shape:
Circular
Mated Stacking Heights:
7.3mm
Voltage Rating:
800V
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
12.0µin (0.30µm)
Fastening Type:
Screw Lock
Termination:
Solder
Current Rating (Amps):
-
Contact Length - Post:
-
Pitch - Mating:
-
Ingress Protection:
-
Features:
Jackscrews, Mating Flange, Mounting Flange, Polarizing Key
Mounting Type:
Through Hole
Series:
Datamate Mix-Tek
Packaging:
Tube
Insulation Material:
Polyphenylene Sulfide (PPS), Glass Filled
Contact Type:
Female Socket
Contact Material:
Beryllium Copper, Brass
Base Product Number:
M80-4T1
ECCN:
EAR99
This is manufactured by Harwin Inc.. The manufacturer part number is M80-4T10605F9-02-321-00-000. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 10.0µin (0.25µm) of post thickness. The product carries possible position value of 8 (6 + 2 power). 0.205" (5.20mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, military. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. The mated stacking heights of a bespoke product includes 7.3mm. Moreover, the product has a nominal 800v voltage rating. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 12.0µin (0.30µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, screw lock is the Fastening Type of the product. The product features solder termination style. The splendid features of the product include jackscrews, mating flange, mounting flange, polarizing key. The product is available in through hole configuration. The product datamate mix-tek, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust polyphenylene sulfide (pps), glass filled insulation material. It has typical contact type of female socket. The product is made from sturdy beryllium copper, brass materials. Moreover, it corresponds to m80-4t1, a base product number of the product. The product is designated with the ear99 code number.
