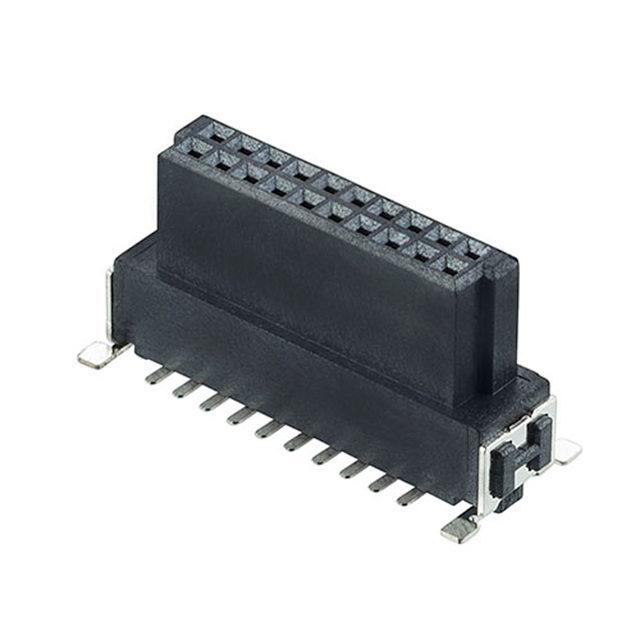

Harwin Inc. M55-6012042R

M55-6012042R Harwin Inc.
M55-6012042R
Harwin Inc.

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
100.0µin (2.54µm)
Number of Positions:
20
Contact Length - Post:
-
title:
M55-6012042R
Insulation Height:
0.356" (9.05mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
Applications:
Automotive, General Purpose, Industrial
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Rectangular
Mated Stacking Heights:
10.8mm, 12.3mm, 13.9mm
Voltage Rating:
100VAC
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
1.00µin (0.025µm)
Fastening Type:
Latch Holder
Termination:
Solder
standardLeadTime:
15 Weeks
Current Rating (Amps):
1.2A
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide, Pick and Place, Solder Retention
Mounting Type:
Surface Mount
Series:
Archer Kontrol
Packaging:
Tape & Reel (TR)
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
M55-601
ECCN:
EAR99
Checking for live stock

This is manufactured by Harwin Inc.. The manufacturer part number is M55-6012042R. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -55°c ~ 125°c operating temperature range. Additionally, it features 100.0µin (2.54µm) of post thickness. The product carries possible position value of 20. 0.356" (9.05mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. The product is widely employed in automotive, general purpose, industrial. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical rectangular shape. The mated stacking heights of a bespoke product includes 10.8mm, 12.3mm, 13.9mm. Moreover, the product has a nominal 100vac voltage rating. It carries 0.050" (1.27mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 1.00µin (0.025µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. It has a long 15 weeks standard lead time. Additionally, the product's output is 1.2a. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide, pick and place, solder retention. The product is available in surface mount configuration. The product archer kontrol, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. It has a robust liquid crystal polymer (lcp) insulation material. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to m55-601, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
M55-6011242R(Product Brief)
pdf icon
Harwin REACH(Environmental Information)
pdf icon
M55-60zzz42R Drawing(Datasheets)
pdf icon
M55-6001242R(Datasheets)
pdf icon
M55 Series Spec Sheet(Design Resources)
pdf icon
M55-6001242R(Other Related Documents)
