Samtec Inc. SFM-110-02-L-D-A-K-TR

SFM-110-02-L-D-A-K-TR Samtec Inc.
SFM-110-02-L-D-A-K-TR
Samtec Inc.

Product Information

Manufacturer Standard Lead Time:
8 Weeks
Style:
Board to Board or Cable
Detailed Description:

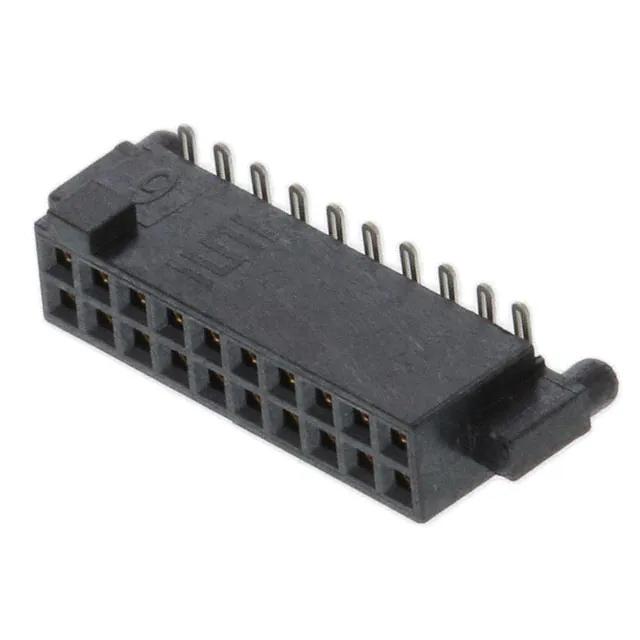

20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold
Operating Temperature:
-55°C ~ 125°C
Number of Positions:
20
Contact Finish - Mating:
Gold
Insulation Height:
0.185" (4.70mm)
Insulation Color:
Black
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Square
Manufacturer:
Samtec Inc.
Voltage Rating:
250VAC
Row Spacing - Mating:
0.050" (1.27mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Contact Finish Thickness - Mating:
10.0µin (0.25µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
3.2A per Contact
Pitch - Mating:
0.050" (1.27mm)
Features:
Board Guide, Pick and Place
Mounting Type:
Surface Mount
Series:
Tiger Eye™ SFM
Mated Stacking Heights:
6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm
Packaging:
Cut Tape (CT)
Customer Reference:
Contact Type:
Female Socket
Contact Finish - Post:
Tin
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Material:
Beryllium Copper
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is SFM-110-02-L-D-A-K-TR. It has typical 8 weeks of manufacturer standard lead time. Additionally, the product is designed with board to board or cable Style. It features 20 position receptacle connector 0.050" (1.27mm) surface mount gold. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 20. It has nice contact finishing of gold. 0.185" (4.70mm) of insulation height. In addition, black is the insulation color of the product. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The samtec inc.'s product offers user-desired applications. Moreover, the product has a nominal 250vac voltage rating. It carries 0.050" (1.27mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. However, 10.0µin (0.25µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 3.2a per contact. It has 0.050" (1.27mm) of pitch-mating value. The splendid features of the product include board guide, pick and place. The product is available in surface mount configuration. The product tiger eye™ sfm, is a highly preferred choice for users. The mated stacking heights of a bespoke product includes 6.15mm, 6.30mm, 7.92mm, 8.08mm, 9.70mm, 9.86mm, 11.61mm, 11.76mm. In addition, cut tape (ct) is the available packaging type of the product. It has typical contact type of female socket. It has possible tin contact post finishing. It has a robust liquid crystal polymer (lcp) insulation material. The product is made from sturdy beryllium copper materials.

pdf icon
SFM Series Drawing, Double Row(Datasheets)
pdf icon
SFM(L) Series Datasheet(Datasheets)
