Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 125°C
Contact Finish Thickness - Post:
-
Number of Positions:
6
Insulation Height:
0.180" (4.57mm)
Voltage Rating:
250VAC
edacadModel:

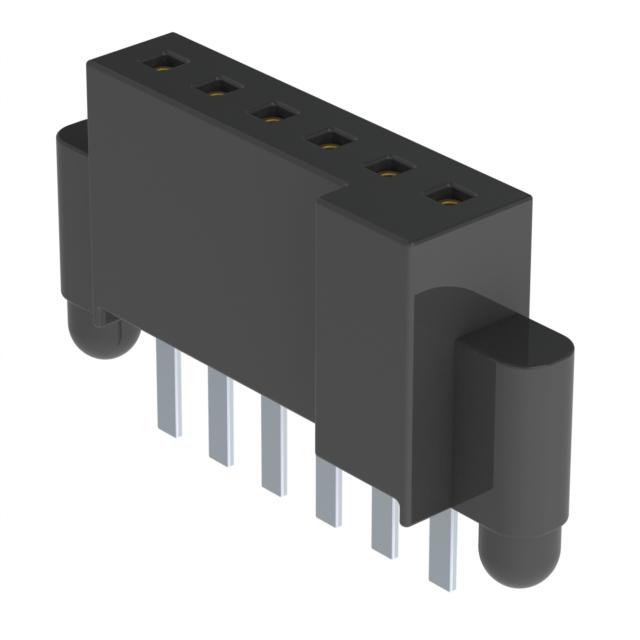

SFM-106-03-S-S-A-K Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/7810283
Insulation Color:
Black
Contact Shape:
Square
Mated Stacking Heights:
6.02mm, 6.17mm, 7.80mm, 7.95mm, 9.58mm, 9.73mm, 11.48mm, 11.63mm
Insulation Material:
Liquid Crystal Polymer (LCP)
Package:
Bulk
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
Not Applicable
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
3.2A per Contact
Contact Length - Post:
0.075" (1.91mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
Board Guide, Pick and Place
Mounting Type:
Through Hole
Series:
Tiger Eye™ SFM
Contact Type:
Female Socket
Contact Material:
Beryllium Copper
Base Product Number:
SFM-106
ECCN:
EAR99
