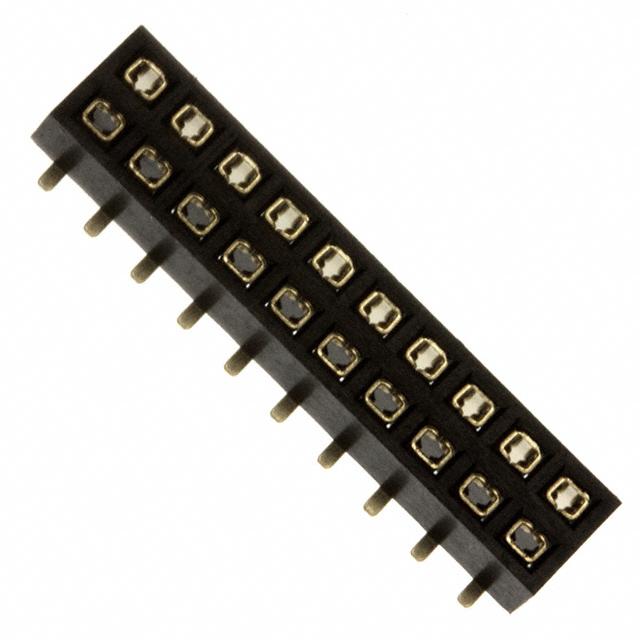

Sullins Connector Solutions NPPN102GHNP-RC

NPPN102GHNP-RC Sullins Connector Solutions
Sullins Connector Solutions

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Gold
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 105°C
Contact Finish Thickness - Post:
Flash
Number of Positions:
20
Insulation Height:
0.110" (2.79mm)
Insulation Color:
Black
REACH Status:
REACH Unaffected
edacadModel:
NPPN102GHNP-RC Models
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/810095
Contact Shape:
Square
Mated Stacking Heights:
-
Voltage Rating:
-
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Header, Bottom Entry
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
Flash
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
1A
Contact Length - Post:
-
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Surface Mount
Series:
-
Packaging:
Bulk
Insulation Material:
Polyamide (PA6T), Nylon 6T
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
NPPN102
ECCN:
EAR99
Checking for live stock

This is manufactured by Sullins Connector Solutions. The manufacturer part number is NPPN102GHNP-RC. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible gold contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -40°c ~ 105°c operating temperature range. Additionally, it features flash of post thickness. The product carries possible position value of 20. 0.110" (2.79mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is reach unaffected. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. It carries 0.079" (2.00mm) of row spacing. header, bottom entry Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, flash is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1a. It has 0.079" (2.00mm) of pitch-mating value. The splendid features of the product include board guide. The product is available in surface mount configuration. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa6t), nylon 6t insulation material. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to nppn102, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
NPPNxx2GxNx-RC Drawing(Product Drawings)
pdf icon
Sullins Connector Solutions RoHS Cert(Environmental Information)
pdf icon
Sullins Connector Solutions REACH(Environmental Information)
