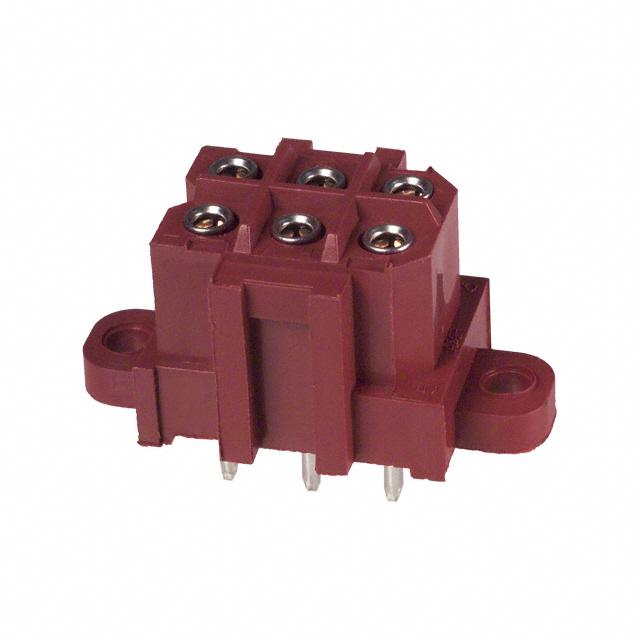

TE Connectivity AMP Connectors 207524-3

207524-3 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Cable/Wire
Contact Finish - Post:
Tin-Lead
HTSUS:
8536.69.4040
RoHS Status:
Not applicable
Operating Temperature:
-55°C ~ 130°C
Contact Finish Thickness - Post:
150.0µin (3.81µm)
Number of Positions:
6
Contact Length - Post:
0.181" (4.60mm)
Insulation Height:
0.565" (14.35mm)
Insulation Color:
Black, Red
REACH Status:
Vendor Undefined
Applications:
-
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Shape:
Circular
Mated Stacking Heights:
-
Voltage Rating:
600V
Row Spacing - Mating:
0.197" (5.00mm)
Connector Type:
Header
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Latch Holder
Termination:
Solder
Current Rating (Amps):
7.5A
Pitch - Mating:
0.197" (5.00mm)
Ingress Protection:
-
Features:
Mounting Flange
Mounting Type:
Through Hole
Series:
Metrimate
Packaging:
Bulk
Insulation Material:
Polyamide (PA), Nylon
Contact Type:
Female Socket
Contact Material:
Phosphor Bronze
Base Product Number:
207524
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 207524-3. It has nice contact finishing of gold. Additionally, the product is designed with board to cable/wire Style. It has possible tin-lead contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is not applicable. The product has -55°c ~ 130°c operating temperature range. Additionally, it features 150.0µin (3.81µm) of post thickness. The product carries possible position value of 6. 0.181" (4.60mm) is the given possible contact length (post) values. 0.565" (14.35mm) of insulation height. In addition, black, red is the insulation color of the product. In addition, it is vendor undefined. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. It has a typical circular shape. Moreover, the product has a nominal 600v voltage rating. It carries 0.197" (5.00mm) of row spacing. header Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, latch holder is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 7.5a. It has 0.197" (5.00mm) of pitch-mating value. The splendid features of the product include mounting flange. The product is available in through hole configuration. The product metrimate, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has a robust polyamide (pa), nylon insulation material. It has typical contact type of female socket. The product is made from sturdy phosphor bronze materials. Moreover, it corresponds to 207524, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Devices 14/Mar/2016(PCN Obsolescence/ EOL)
pdf icon
207524 Drawing(Product Drawings)
pdf icon
207524 Dimensions 28/Sep/2015(PCN Design/Specification)

Reviews

  • Be the first to review.


FAQs

Yes. You can also search 207524-3 on website for other similar products.
We accept all major payment methods for all products including ET15079696. Please check your shopping cart at the time of order.
You can order TE Connectivity AMP Connectors brand products with 207524-3 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Headers, Receptacles, Female Sockets category are shipped in lowest possible time.
You will get a confirmation email regarding your order of TE Connectivity AMP Connectors 207524-3. You can also check on our website or by contacting our customer support team for further order details on TE Connectivity AMP Connectors 207524-3.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET15079696 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "TE Connectivity AMP Connectors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET15079696.
Yes. We ship 207524-3 Internationally to many countries around the world.
