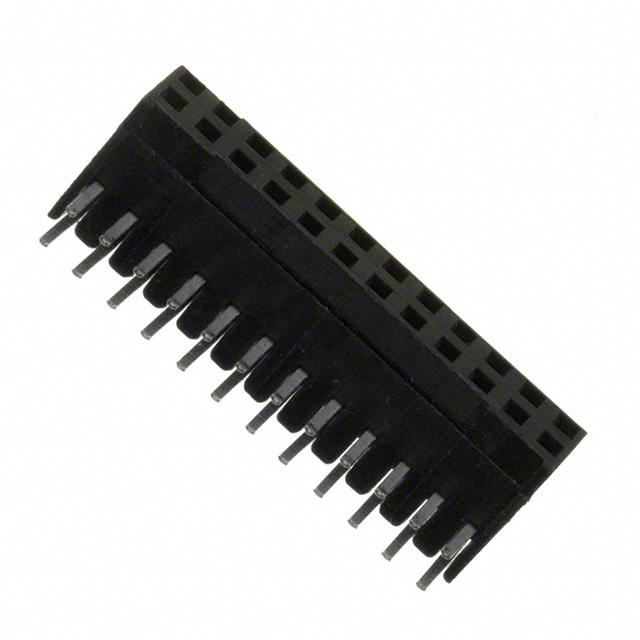

3M 150224-5002-RB

150224-5002-RB 3M
3M

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board or Cable
HTSUS:
8536.69.4040
Operating Temperature:
-55°C ~ 105°C
Number of Positions:
24
Contact Length - Post:
0.100" (2.54mm)
Insulation Height:
0.179" (4.55mm)
Insulation Color:
Black
Number of Rows:
2
Material Flammability Rating:
UL94 V-0
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Voltage Rating:
500VDC
Row Spacing - Mating:
0.079" (2.00mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Type:
Female Socket
Fastening Type:
Push-Pull
Termination:
Solder
Current Rating (Amps):
1A
Pitch - Mating:
0.079" (2.00mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole, Right Angle
Series:
1502
Packaging:
Tray
Mated Stacking Heights:
-
Contact Finish - Post:
Tin
Base Product Number:
150224
ECCN:
EAR99
Checking for live stock

This is manufactured by 3M. The manufacturer part number is 150224-5002-RB. It has nice contact finishing of gold. Additionally, the product is designed with board to board or cable Style. It is assigned with possible HTSUS value of 8536.69.4040. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 24. 0.100" (2.54mm) is the given possible contact length (post) values. 0.179" (4.55mm) of insulation height. In addition, black is the insulation color of the product. It comes in 2 of rows. It carries ul94 v-0 of material flammability rating. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, the product has a nominal 500vdc voltage rating. It carries 0.079" (2.00mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). It has typical contact type of female socket. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. Additionally, the product's output is 1a. It has 0.079" (2.00mm) of pitch-mating value. The product is available in through hole, right angle configuration. The product 1502, is a highly preferred choice for users. In addition, tray is the available packaging type of the product. It has possible tin contact post finishing. Moreover, it corresponds to 150224, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
1502 Series 01/Sep/2015(PCN Obsolescence/ EOL)
pdf icon
Multiple Series 31/Jan/2017(PCN Obsolescence/ EOL)
pdf icon
1502 Series Datasheet(Datasheets)
pdf icon
1502 Series Drawing(Product Drawings)
