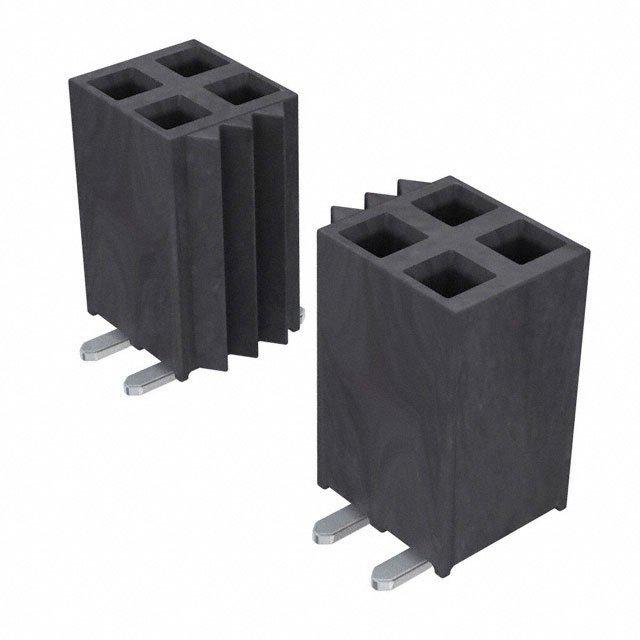

Samtec Inc. SSW-120-22-F-D-VS

SSW-120-22-F-D-VS Samtec Inc.
Samtec Inc.

Product Information

Manufacturer Standard Lead Time:
3 Weeks
Style:
Board to Board or Cable
Current Rating:
5.7A per Contact
Operating Temperature:
-55°C ~ 125°C
Number of Positions:
40
Contact Finish - Mating:
Gold
Insulation Height:
0.335" (8.51mm)
Contact Finish Thickness - Mating:
3µin (0.08µm)
Number of Rows:
2
Standard Package:
1
Contact Shape:
Square
Manufacturer:
Samtec Inc.
Insulation Color:
Black
Material Flammability Rating:
UL94 V-0
Row Spacing - Mating:
0.100" (2.54mm)
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Pull
Termination:
Solder
Pitch - Mating:
0.100" (2.54mm)
Mounting Type:
Surface Mount
Series:
SSW
Packaging:
Bulk
Contact Type:
Forked
Contact Finish - Post:
Tin
Insulation Material:
Liquid Crystal Polymer (LCP)
Contact Material:
Phosphor Bronze
RoHs Compliant
Checking for live stock

This is manufactured by Samtec Inc.. The manufacturer part number is SSW-120-22-F-D-VS. It has typical 3 weeks of manufacturer standard lead time. Additionally, the product is designed with board to board or cable Style. The product has a current rating of 5.7a per contact. The product has -55°c ~ 125°c operating temperature range. The product carries possible position value of 40. It has nice contact finishing of gold. 0.335" (8.51mm) of insulation height. However, 3µin (0.08µm) is the "Contact Finish Thickness - Mating" of the product. It comes in 2 of rows. It is available in the standard package of 1. It has a typical square shape. The samtec inc.'s product offers user-desired applications. In addition, black is the insulation color of the product. It carries ul94 v-0 of material flammability rating. It carries 0.100" (2.54mm) of row spacing. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has 0.100" (2.54mm) of pitch-mating value. The product is available in surface mount configuration. The product ssw, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. It has typical contact type of forked. It has possible tin contact post finishing. It has a robust liquid crystal polymer (lcp) insulation material. The product is made from sturdy phosphor bronze materials.

pdf icon
SSW Series Datasheet SMT(Datasheets)
pdf icon
SSW-1yy-22-yyy-y-VS Drawing(Datasheets)
