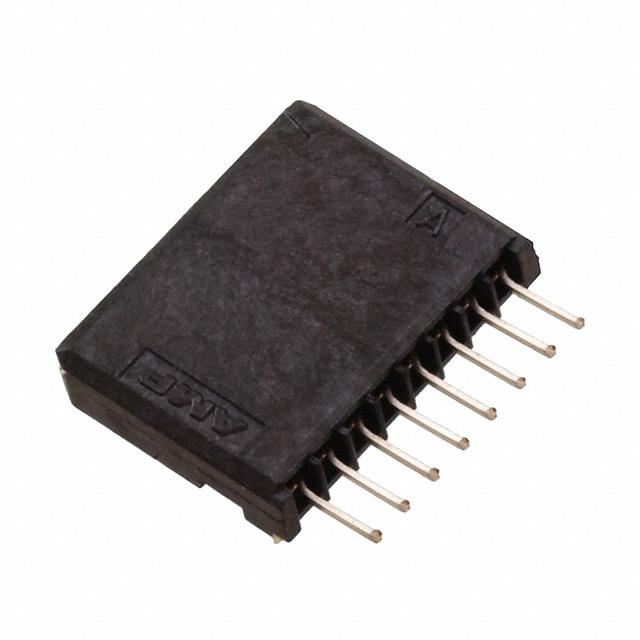

TE Connectivity AMP Connectors 5-104192-1

5-104192-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

Contact Finish - Mating:
Gold
Style:
Board to Board
Contact Finish - Post:
Tin
HTSUS:
8536.69.4040
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-65°C ~ 105°C
Contact Finish Thickness - Post:
150.0µin (3.81µm)
Number of Positions:
8
Insulation Height:
0.350" (8.89mm)
Insulation Color:
Black
REACH Status:
Vendor Undefined
edacadModel:
5-104192-1 Models
Applications:
-
Number of Rows:
1
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2259678
Contact Shape:
Square
Mated Stacking Heights:
11.43mm, 12.57mm
Voltage Rating:
30VAC
Row Spacing - Mating:
-
Connector Type:
Receptacle
Number of Positions Loaded:
All
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Fastening Type:
Push-Pull
Termination:
Solder
standardLeadTime:
32 Weeks
Current Rating (Amps):
1A
Contact Length - Post:
0.100" (2.54mm)
Pitch - Mating:
0.050" (1.27mm)
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
AMPMODU System 50
Packaging:
Tube
Insulation Material:
Thermoplastic, Glass Filled
Contact Type:
Female Socket
Contact Material:
Copper Alloy
Base Product Number:
104192
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 5-104192-1. It has nice contact finishing of gold. Additionally, the product is designed with board to board Style. It has possible tin contact post finishing. It is assigned with possible HTSUS value of 8536.69.4040. The product is rohs3 compliant. The product has -65°c ~ 105°c operating temperature range. Additionally, it features 150.0µin (3.81µm) of post thickness. The product carries possible position value of 8. 0.350" (8.89mm) of insulation height. In addition, black is the insulation color of the product. In addition, it is vendor undefined. It comes in 1 of rows. It carries ul94 v-0 of material flammability rating. It has a typical square shape. The mated stacking heights of a bespoke product includes 11.43mm, 12.57mm. Moreover, the product has a nominal 30vac voltage rating. receptacle Connector type offer robust functionality. However, all is the Number of Positions Loaded. Its typical moisture sensitivity level is 1 (unlimited). However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. It has a long 32 weeks standard lead time. Additionally, the product's output is 1a. 0.100" (2.54mm) is the given possible contact length (post) values. It has 0.050" (1.27mm) of pitch-mating value. The product is available in through hole configuration. The product ampmodu system 50, is a highly preferred choice for users. In addition, tube is the available packaging type of the product. It has a robust thermoplastic, glass filled insulation material. It has typical contact type of female socket. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 104192, a base product number of the product. The product is designated with the ear99 code number.
